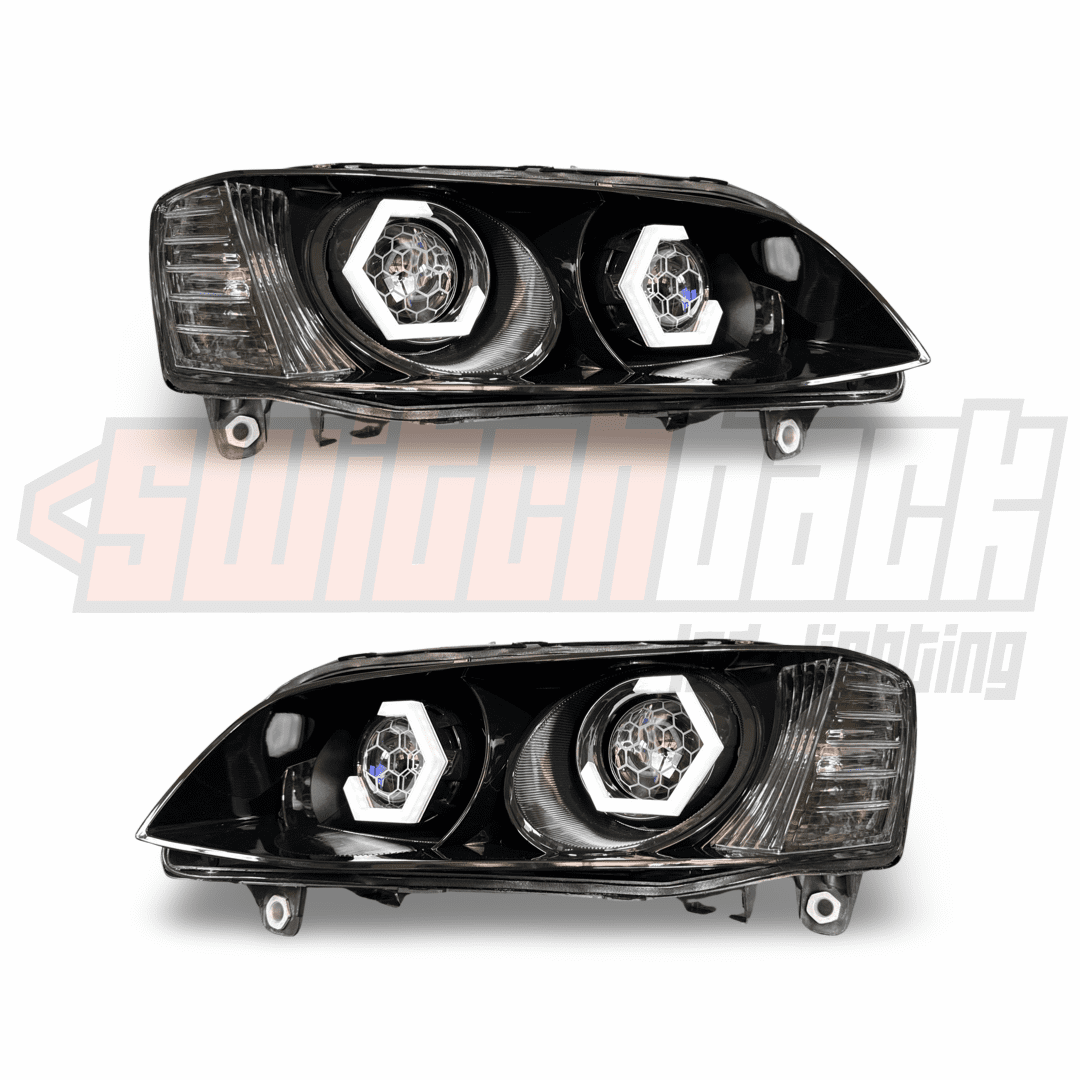

VE Series 2 Custom HEX Headlights
$1,265.00 – $1,518.00 Inc. GST
Here at Switchback LED Lighting we also specialize in building and retrofitting headlight fittings.
VE Series 1 Quad Projectors with Sequential Halos and housing blackout
- Projector conversion from standard reflector housing in High Beam
- Quad Sequential HEX Halos (Controlled Via Smartphone App through Bluetooth)
- 200 Sequential modes + all solid colours.
- Housing Blackout
- Customizable projector shroud colour
These headlights are made upon order.
The headlights plug in as normal, due to the parker bulb being removed. We include a plug and play harness that will allow the halos to be turned on when you turn your parkers on. The bluetooth app also allows you to manually turn the halos off if needed.
The only other wiring that needs to be connected is the passenger side halos, where we include two extension harnesses for each ring to run with the factory wiring just in front of the radiator to the other side where the power supply and driver is to be mounted. The kit is completely Plug and Play
ELECTRONICS: Electronics MUST be installed in an area of the engine bay where their is no risk of water ingress. The electronics in this kits are not waterproof. Failure to do so may cause malfunction or damage to any of the electronic components (Power supply, LED driver, bluetooth module or halos).
- 2x Modified Custom Headlight Fittings
- 1x Wiring kit (Driver module, bluetooth module and power supply)
- 2x Extension harness (generally the passenger side headlights halo connections will be too short to reach the drivers side.)
- 1x Tube of dielectric grease. (This MUST BE used in all 3 pin plugs to prevent water damage. Failure to do so will void warranty on the product)
LED High beam bulb (H1) included. Optional Extras: Low beam, LED indicators.
These can be added at an additional cost.
Low beam fitting stays as a H7, high beam fitting changes FROM H9 to H1 due to the high beam projector.
NOTE: These aftermarket headlights DO NOT come with the indicator sockets. These will need to be removed from your OEM reflector or projector headlights.
LEGALITY FOR ROAD USE
For off-road use only. Please check our ADR regulation page for any further information: https://switchbacklighting.com.au/adr/
We estimate a 4 week lead time from when the order is placed usually they are completed earlier but we allow 4.
These headlights fit all Series 2 VE models. These DO NOT fit E Series HSV Models. Please ensure that the correct model is selected for your make and model, we do NOT offer any exchanges for incorrect orders.
If you are unsure on what model fits your vehicle, please send us a message/email and we will more than happily help you out.
PLEASE NOTE: There is a common issue with the design of these headlights when blacking the housing out. The placement of the projector lens in conjunction with the shroud is very close, if these are left in hot/sunny environments the lens can act like a magnifying glass and reflect onto the bottom section of the shroud. Prolong exposure can cause the bottom of the shroud to start to melt due to this reflection.
Please refrain to leaving your car in these conditions to avoid this issue, as our warranty does not cover this.
We offer a warranty period of 12 months for the halos and electronics in this kit. This warranty is only valid if the customer followed all installation directions and used all relevant parts.
|Dimensions||63 × 32 × 46 cm|
Alto Grey (744S), Hazard Yellow (745S), Heron White (679F), Karma (610R), Nitrate (636R), Phantom Black (690F), Poison Ivy (746S), Sizzle (743S), Sting Red/ Red Hot (687F), Voodoo Blue (608R)
High Beam Only, LED Low Beam, High Beam, Parkers and Indicators
