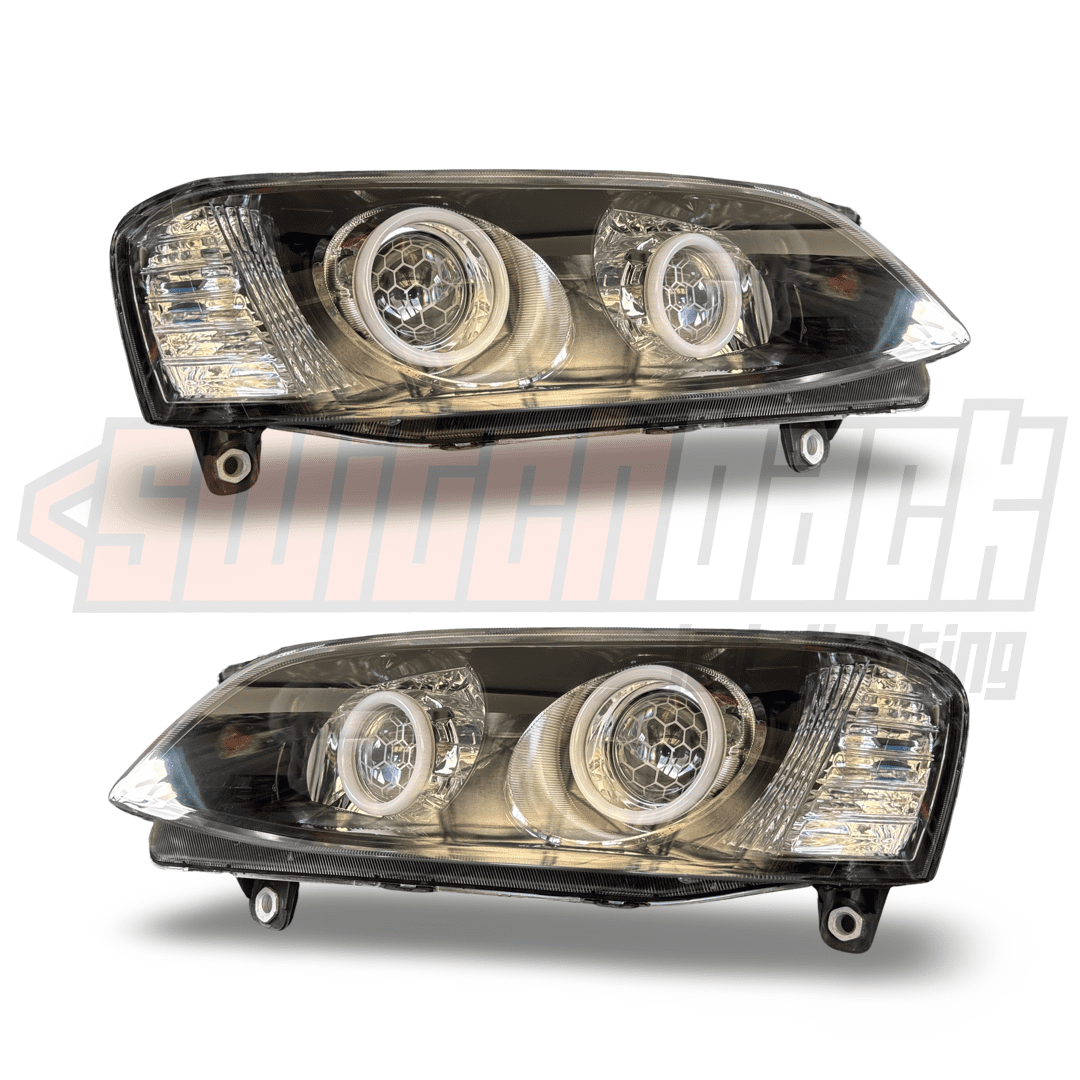

VE Series 1/2 Custom Headlights (Chrome)

$1,265.00$1,573.00 Inc. GST

Available Options
Quantity
Wishlist

Here at Switchback LED Lighting we also specialize in building and retrofitting headlight fittings.

VE Series 1/2 Quad Projectors with Sequential Halos.

Features:

  • Projector conversion from standard reflector housing in High Beam. Fitted with Chrome shroud to match low beam shroud.
  • Quad Sequential Halos (Controlled Via Smartphone App through Bluetooth)
  • 200 Sequential modes + all solid colours.
  • Housing is left chrome.

These headlights are made upon order.

INSTALLATION

The headlights plug in as normal, due to the parker bulb being removed. We include a plug and play harness that will allow the halos to be turned on when you turn your parkers on. The bluetooth app also allows you to manually turn the halos off if needed.

The only other wiring that needs to be connected is the passenger side halos, where we include two extension harnesses for each ring to run with the factory wiring just in front of the radiator to the other side where the power supply and driver is to be mounted. The kit is completely Plug and Play

INCLUDED:

  • 2x Modified Custom Headlight Fittings
  • 1x Wiring kit (Driver module, bluetooth module and power supply)
  • 2x Extension harness (generally the passenger side headlights halo connections will be too short to reach the drivers side.)
  • 1x Tube of dielectric grease. (This MUST BE used in all 3 pin plugs to prevent water damage. Failure to do so will void warranty on the product)

LED High beam bulb (H1) included. Optional Extras: Low beam, LED indicators.

Low beam fitting stays as a H7, high beam fitting changes FROM H9 to H1 due to the high beam projector.

NOTE: These aftermarket headlights DO NOT come with the indicator sockets. These will need to be removed from your OEM reflector or projector headlights.

LEGALITY FOR ROAD USE

For off-road use only. Please refer to our ADR law information page in the footer (bottom) of our site.

Lead Time

We estimate a 3-4 week lead time from when the order is placed. The headlights will be built at the next available moment.

FITMENT

These headlights fit VE Series 2 models only, these DO NOT fit E Series HSV Models. Please ensure that the correct model is selected for your make and model, we do NOT offer any exchanges for incorrect orders.

If you are unsure on what model fits your vehicle, please send us a message/email and we will more than happily help you out.

WARRANTY PERIOD

PLEASE NOTE: There is a common issue with the design of these headlights when blacking the housing out. The placement of the projector lens in conjunction with the shroud is very close, if these are left in hot/sunny environments the lens can act like a magnifying glass and reflect onto the bottom section of the shroud. Prolong exposure can cause the bottom of the shroud to start to melt due to this reflection.

Please refrain to leaving your car in these conditions to avoid this issue, as our warranty does not cover this.

We offer a warranty period of 12 months for the halos and electronics in this kit. This warranty is only valid if the customer followed all installation directions and used all relevant parts.





Weight 9 kg
Dimensions 63 × 31 × 45 cm
Extras?

High Beam Only, LED Low Beam, High Beam, Parkers and Indicators

Series

Series 1, Series 2

Lens Etching

Custom (Please contact us with your design), Honeycomb, None
