Here at Switchback LED Lighting we also specialize in building and retrofitting headlight fittings.

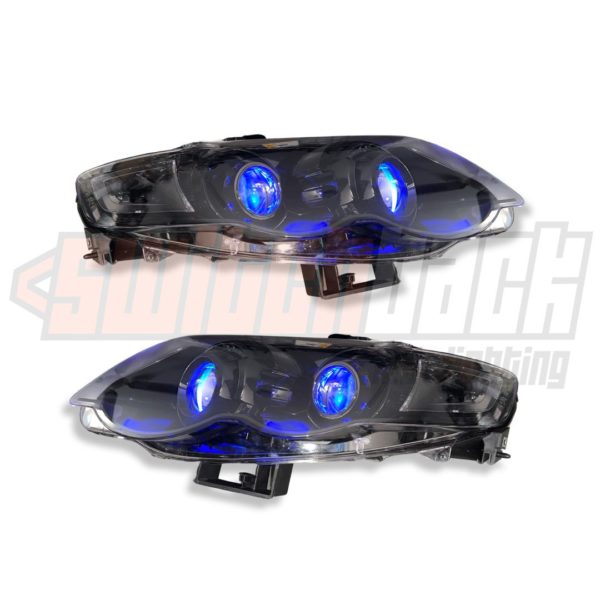

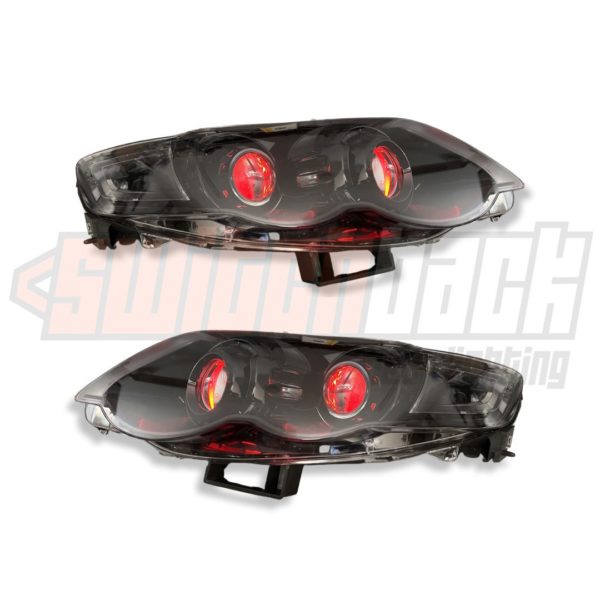

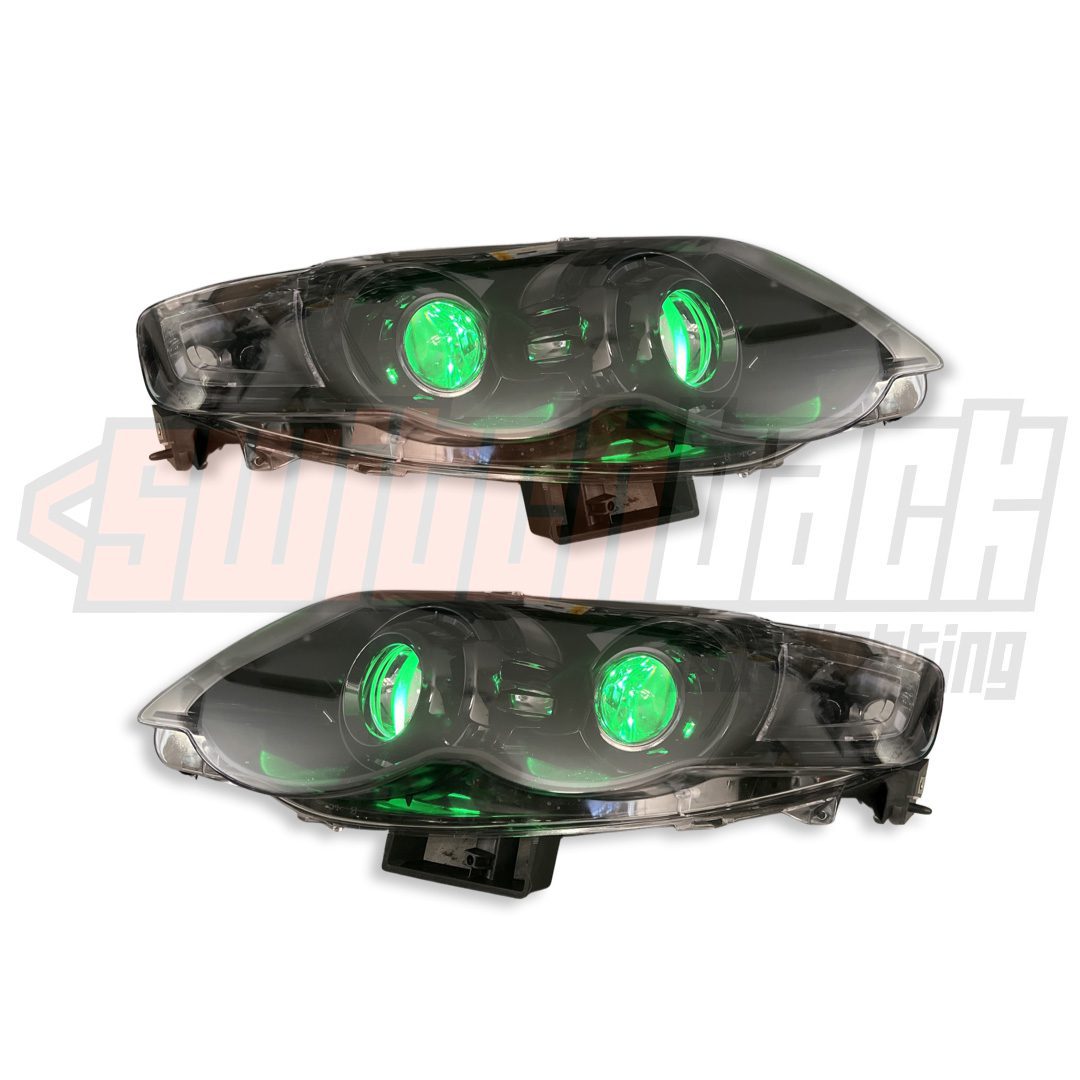

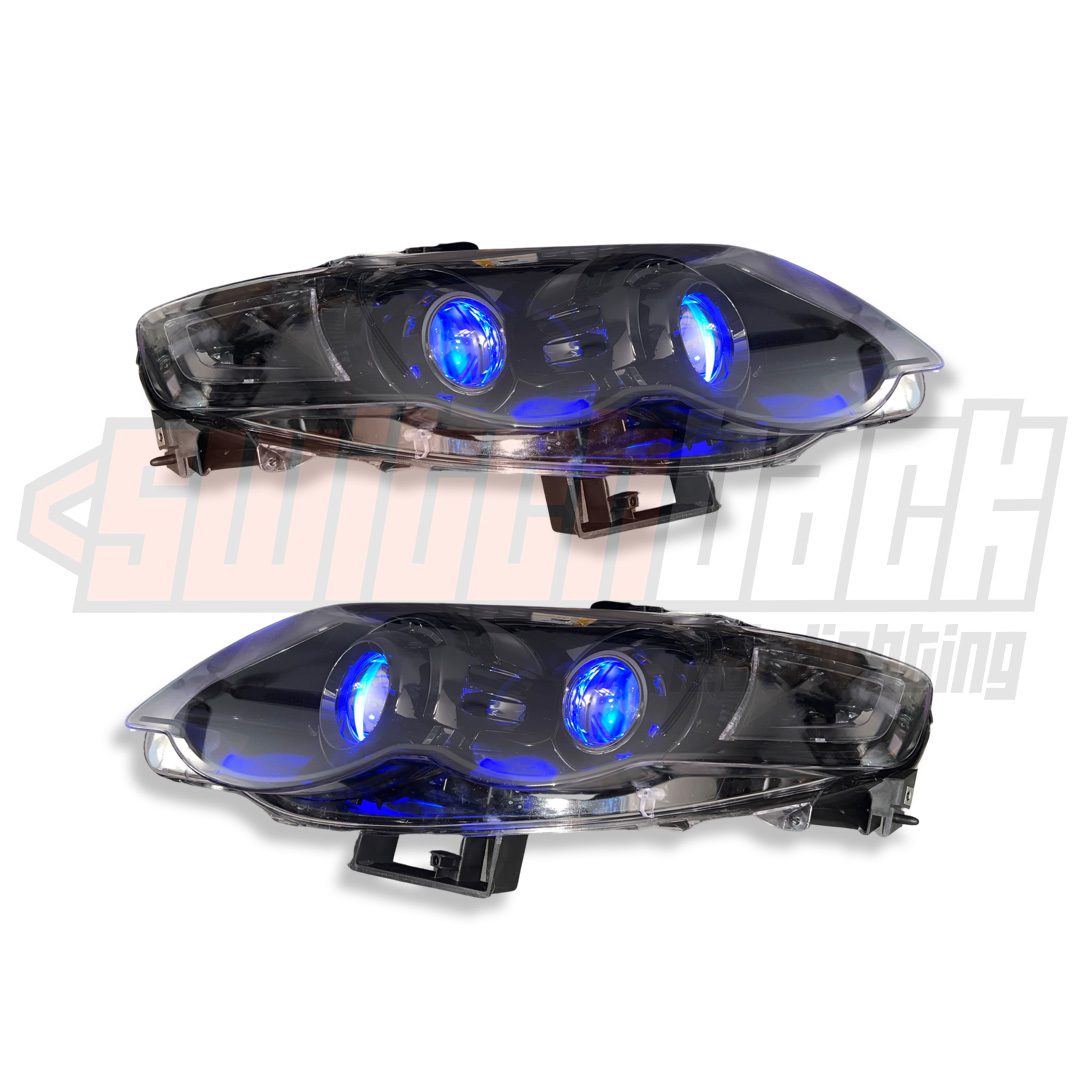

FG XR6/8 Quad Projector Features:

• Projector conversion from standard reflector housing in High Beam
• RGBW Demon Eyes (App Controlled)
• Housing Blackout (Matte, Gloss Black or Custom)
• Customizable Projector Shroud Colour
• Lense Etching (Optional)

These headlights are made upon order so please allow up to 4 weeks for the build to be completed.

INSTALLATION

The headlights plug in as normal (Low beam, parkers, high beam, indicators) but some basic wiring is required to power the demon eyes.

• Wired to accessories power (demon eyes will come on when in accessories mode )
• Wired to ignition (demon eyes will only operate when engine is running .)
• Wired to straight 12V through a switch (This is manual operation, this means that the driver can choose when the demon eyes are on/off.) Leaving them on will flatten your battery.

INCLUDED:

• 2x Modified Custom Headlight Fittings (Based on your order choices)
• Low Beam LED Bulbs (With H7 Adapter) (These are only included if you have selected to have them fitted)
• MK1 – MK2 conversion harness for low beam. (If ordered)
• High Beam LED (H1)
• 1x Wiring kit (Switchback driver module, bluetooth module and power supply)
• 2x Extension harness (generally the passenger side headlights demon eye connections will be too short to reach the drivers side.)
• 1x Tube of dielectric grease. (This MUST BE used in all 5 pin plugs to prevent water damage. Failure to do so will void warranty on the product)

Wiring required:

• Positive (Accessories, Ignition, 12V)
• Negative (Chassis/ – Terminal of the battery)

We include a fuse tap in our kit with wiring instructions.

LEGALITY FOR ROAD USE

For off-road use only. Please refer to our ADR law information page in the footer (bottom) of our site.

Headlight Fitment:

Compatible With Ford Falcon
Sedan / Ute

• FG Series 1 = 2008.02~2011.10
  Model Variants = XR6 / XR6 Turbo / XR8 NOTE: MK1 to MK2 Conversion harness needed for Series 1 Models
• FG Series 2 = 2011.10~2014.09
  Model Variants : XR6 / XR6 Turbo / XR8
