Here at Switchback LED Lighting we also specialize in building and retrofitting headlight fittings.

FG FPV Features:

• Projector conversion from standard reflector housing in High Beam

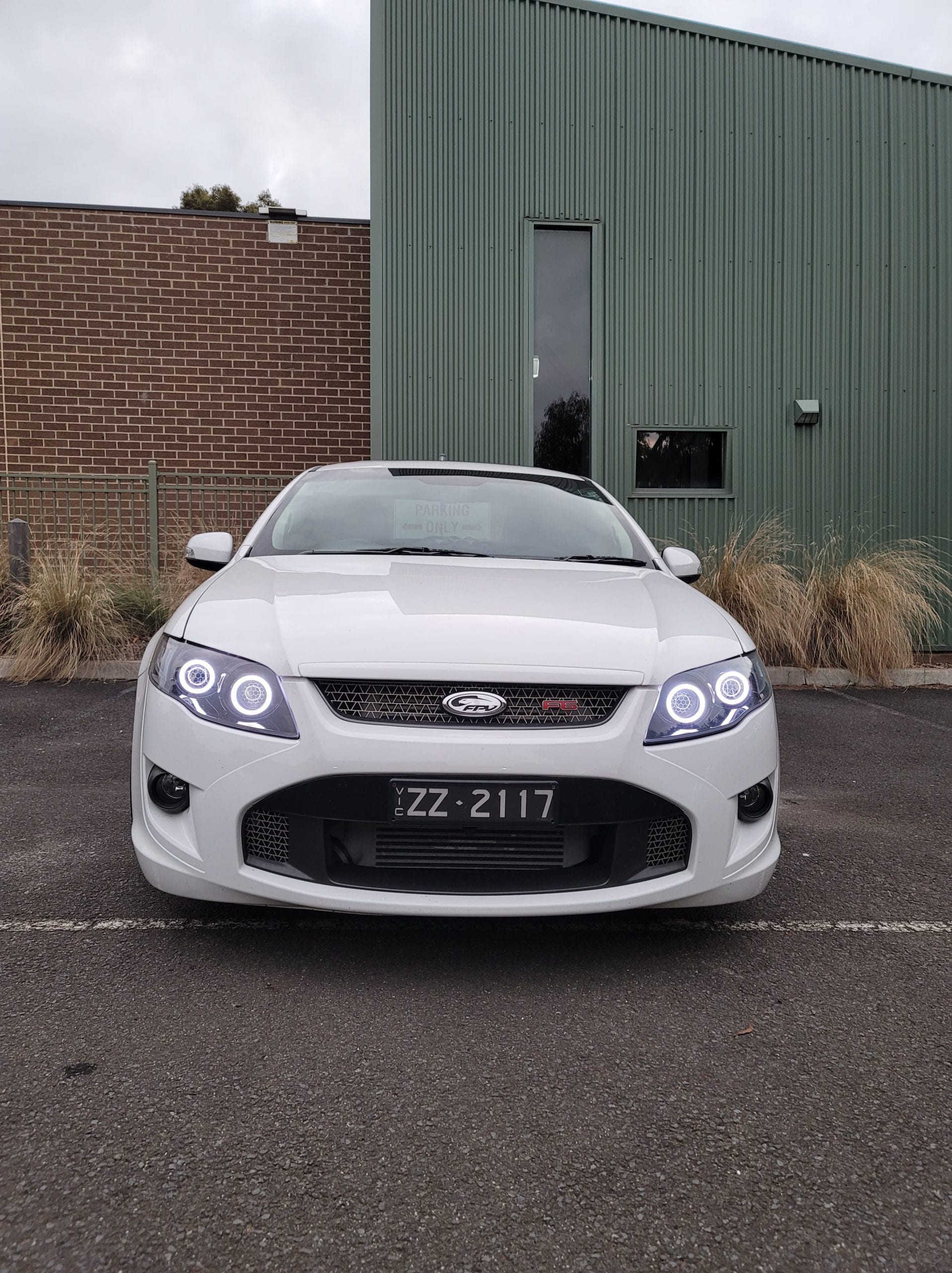

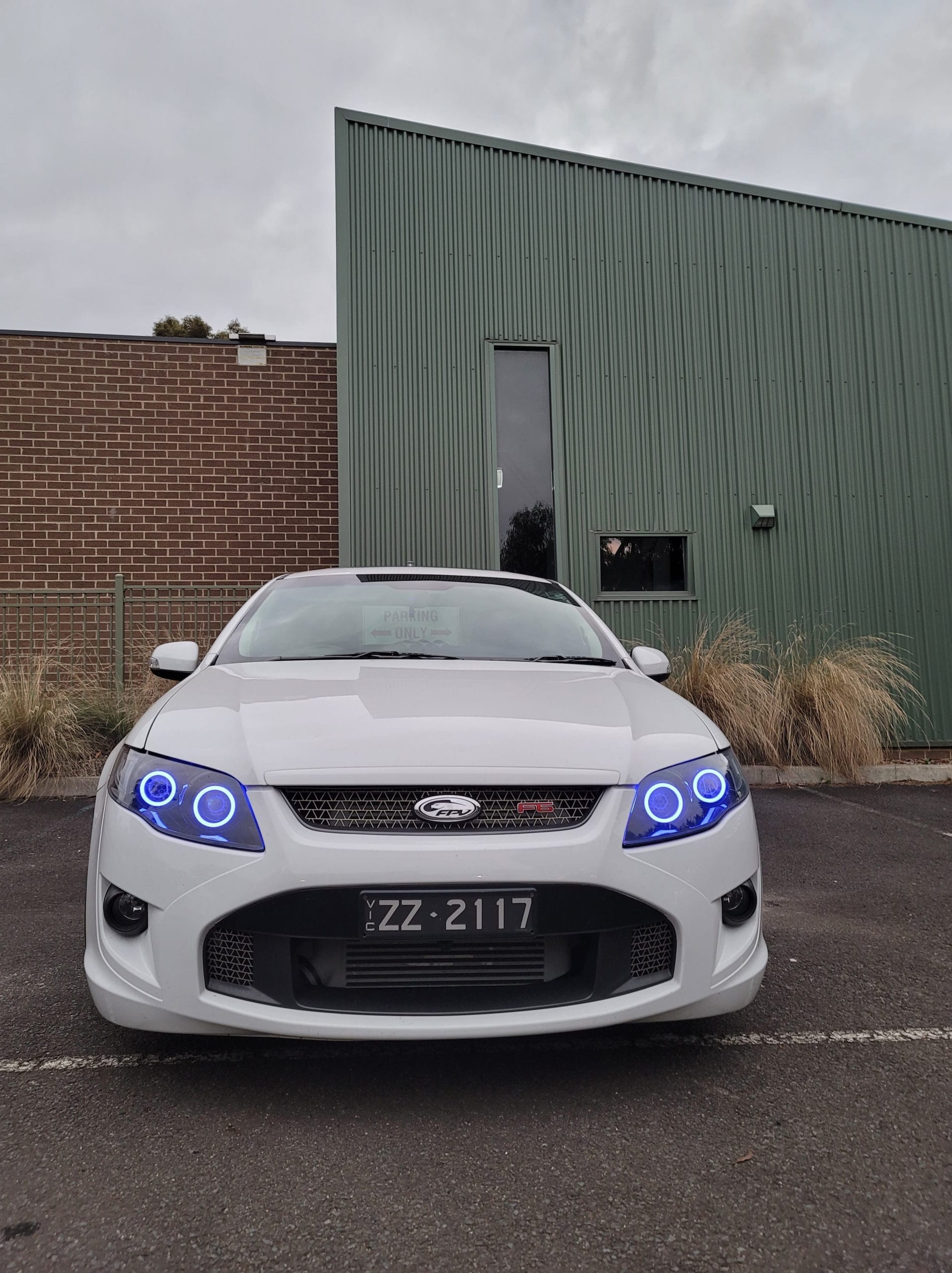

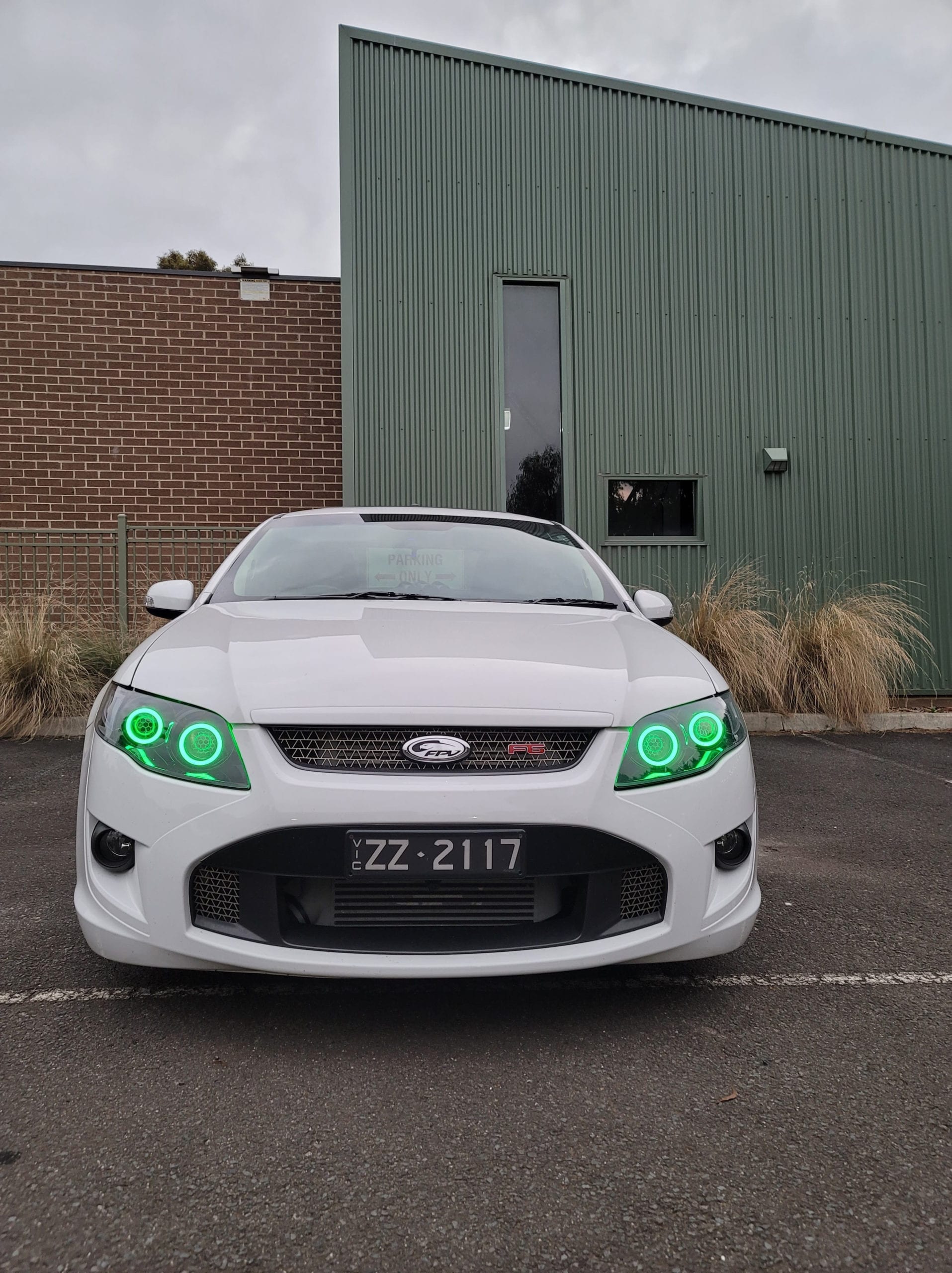

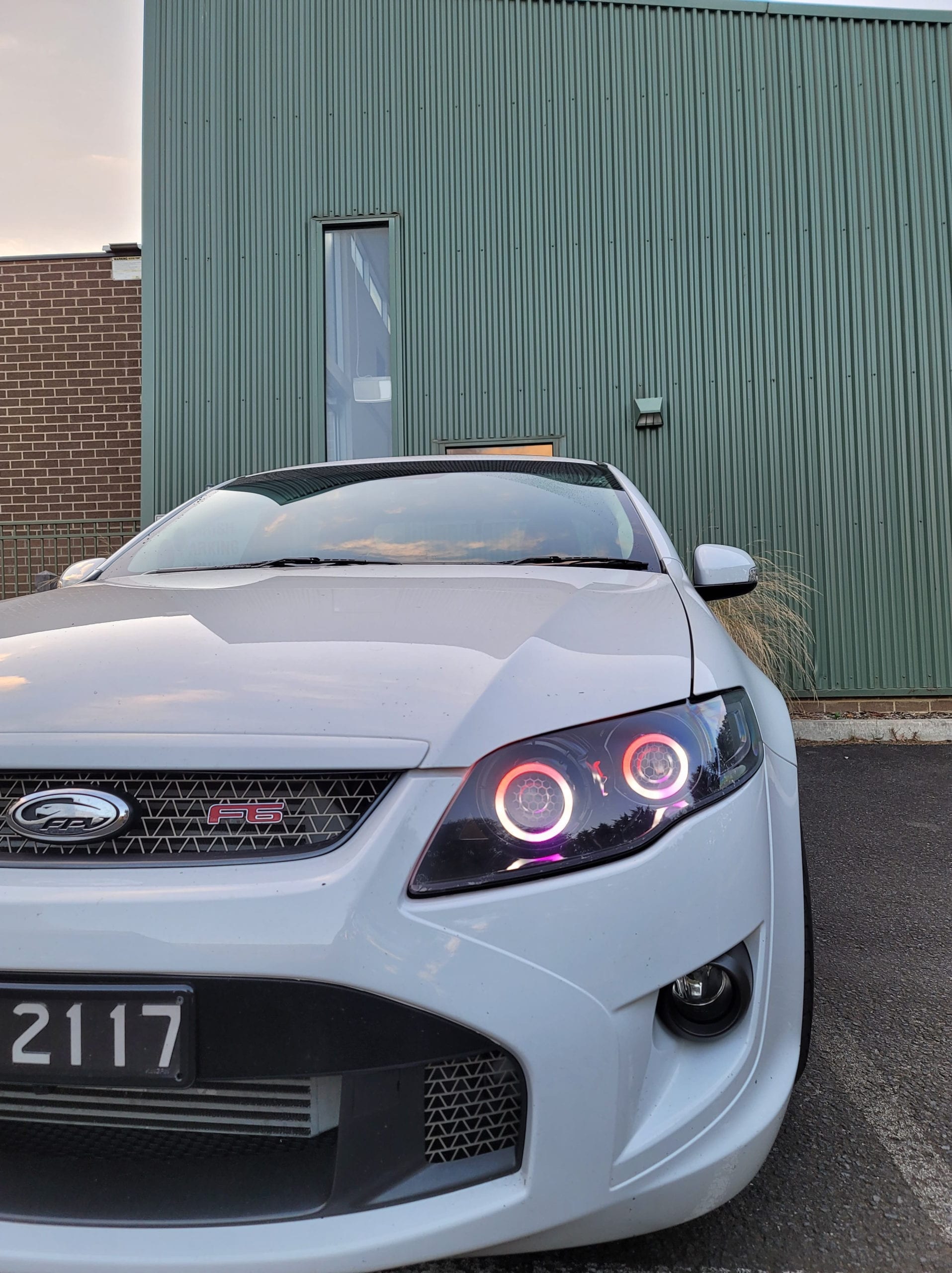

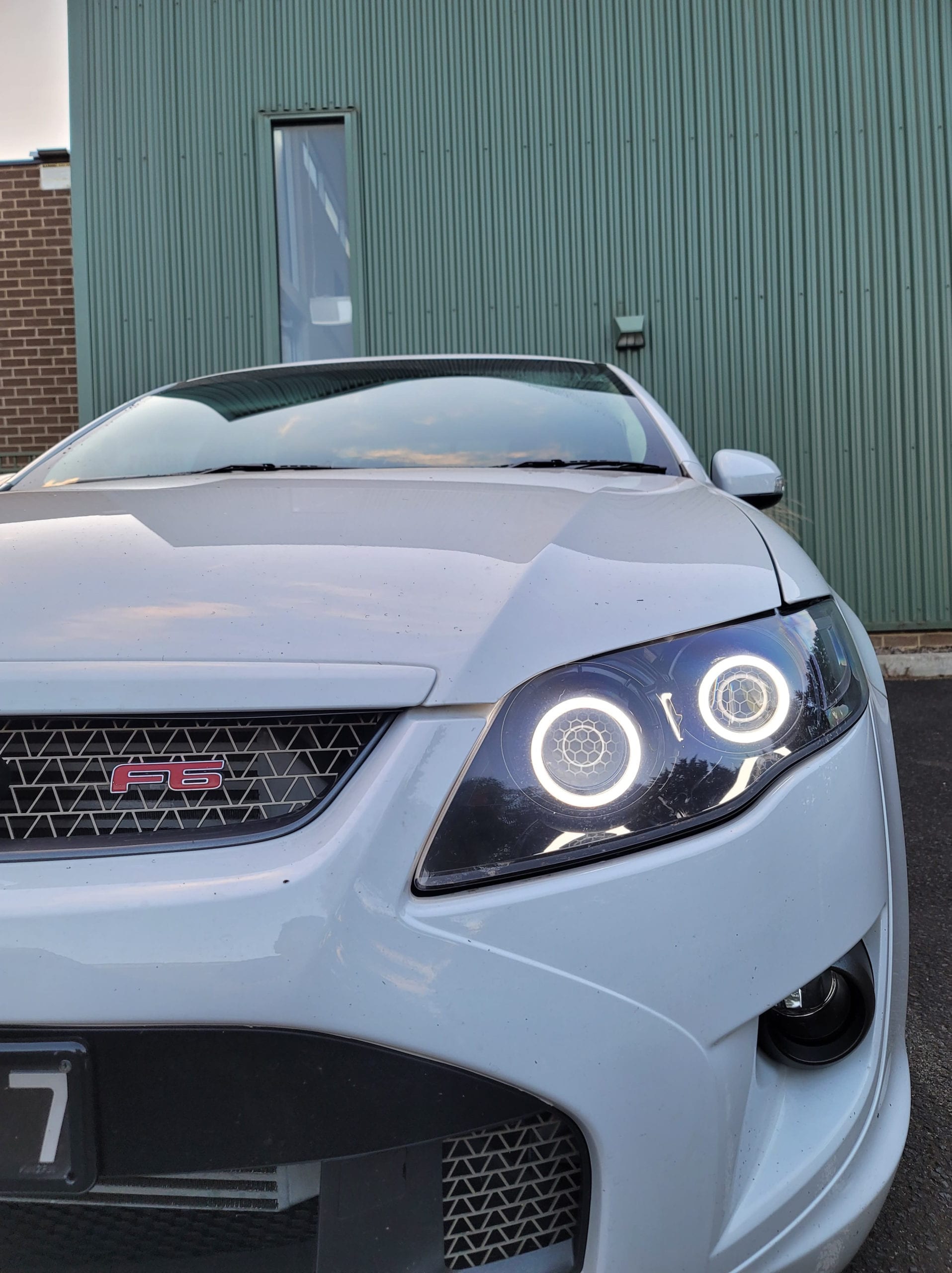

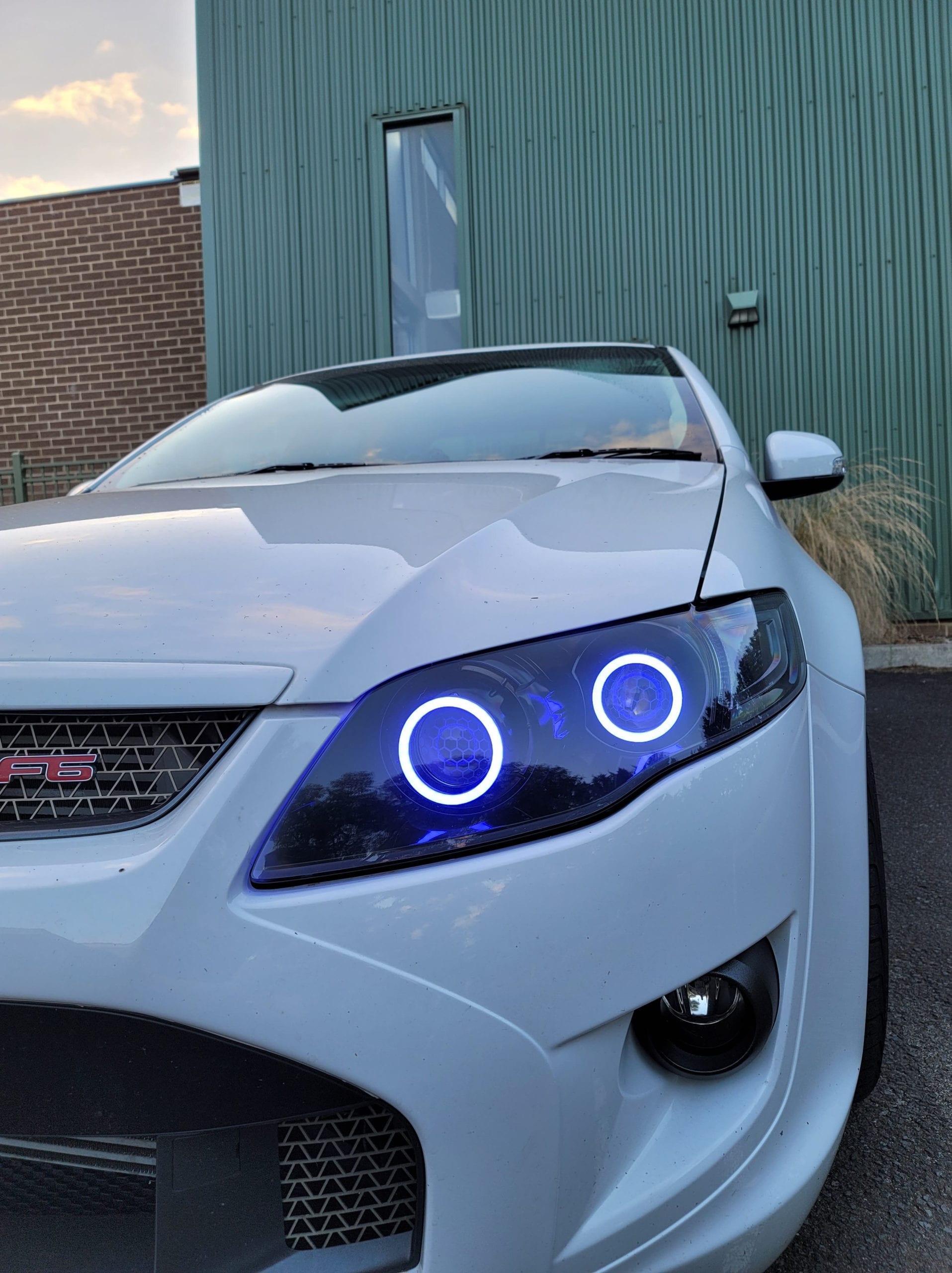

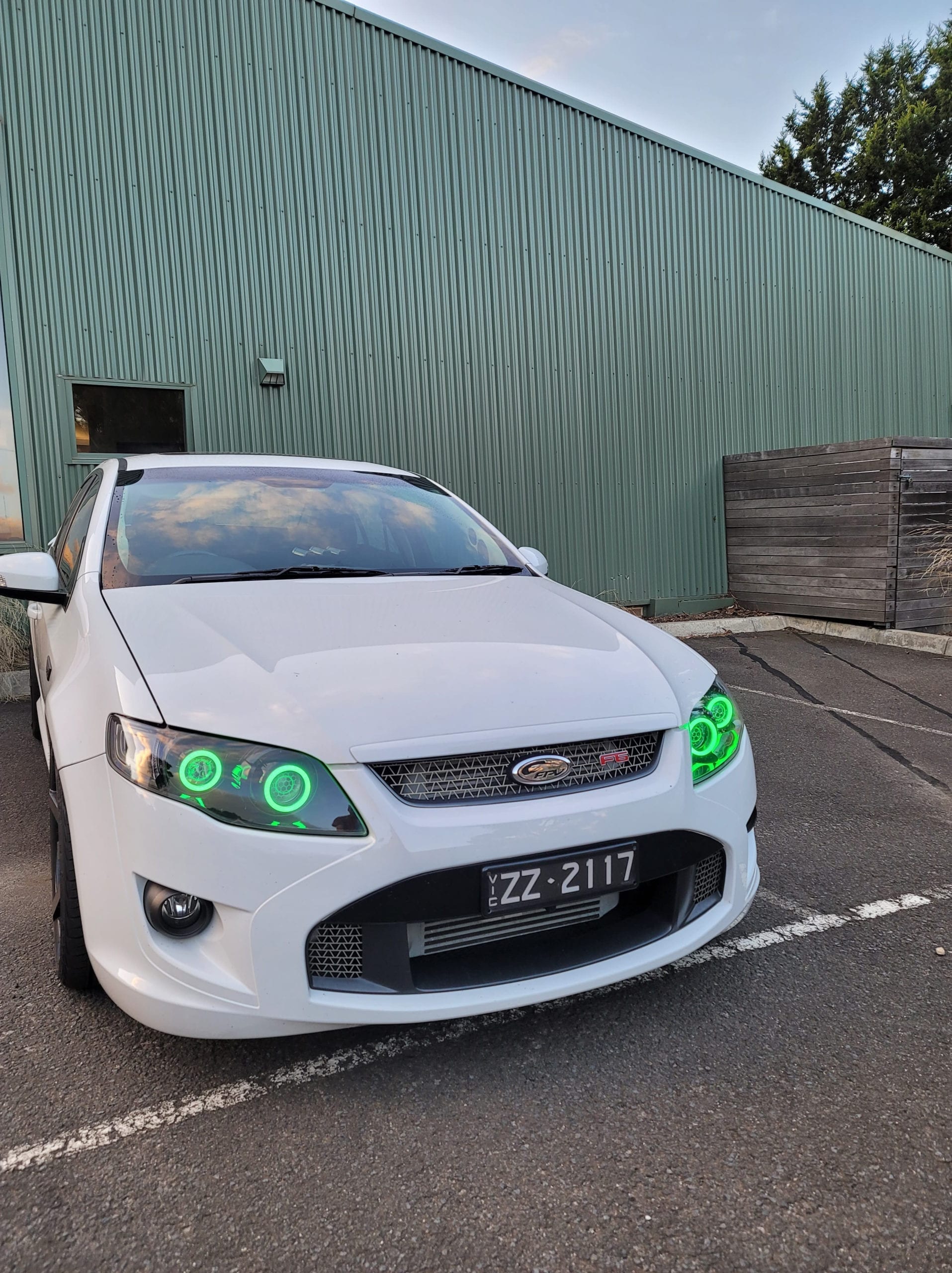

• Quad Sequential Halos (Controlled Via Smartphone App through Bluetooth)
• Housing Blackout
• Customizable Projector Shroud Colour
• Lense Etching

These headlights are made upon order so please allow up to 4 weeks for the build to be completed.

INSTALLATION

Some basic wiring is required to run the halos.

We include a basic Plug & Play harness to get started.

• This harness plugs into a fuse in your fuse box, which can allow the halos to operate wen your key is in the accessories position. Alternatively you can plug into a fuse that has constant 12v power and you can turn them on and off manually through the app.

Wiring required:

• Positive (Accessories, Ignition, 12V) (Fuse tap included)
• Negative (Chassis/ – Terminal of the battery) Ring terminal fitted to negative wire.

The rest of the kit is completely plug and play.

INCLUDED:

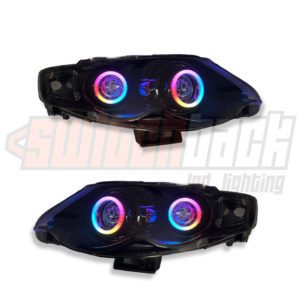

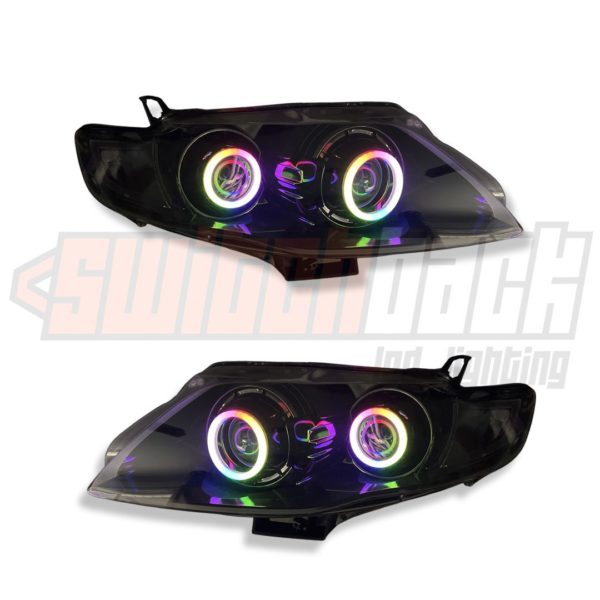

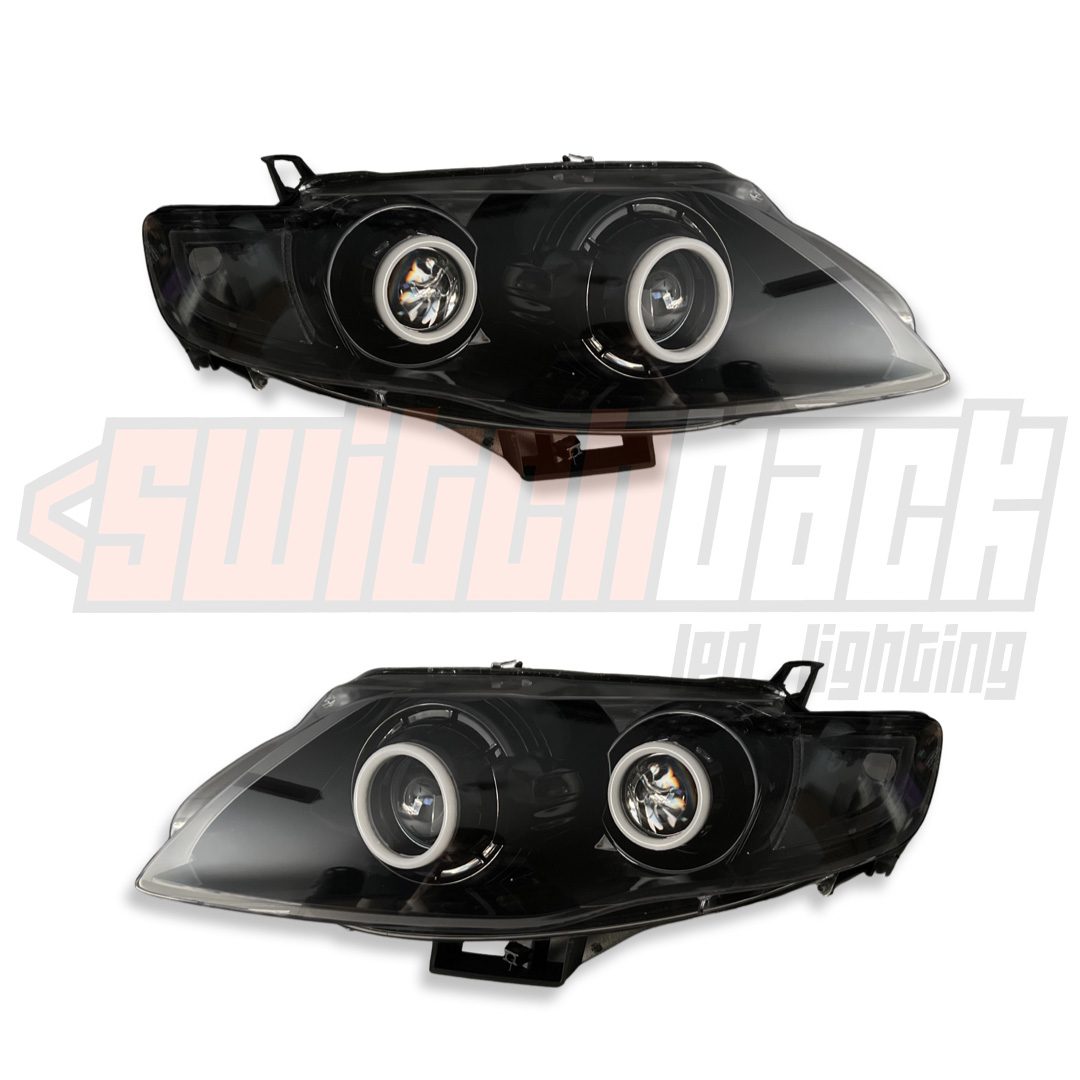

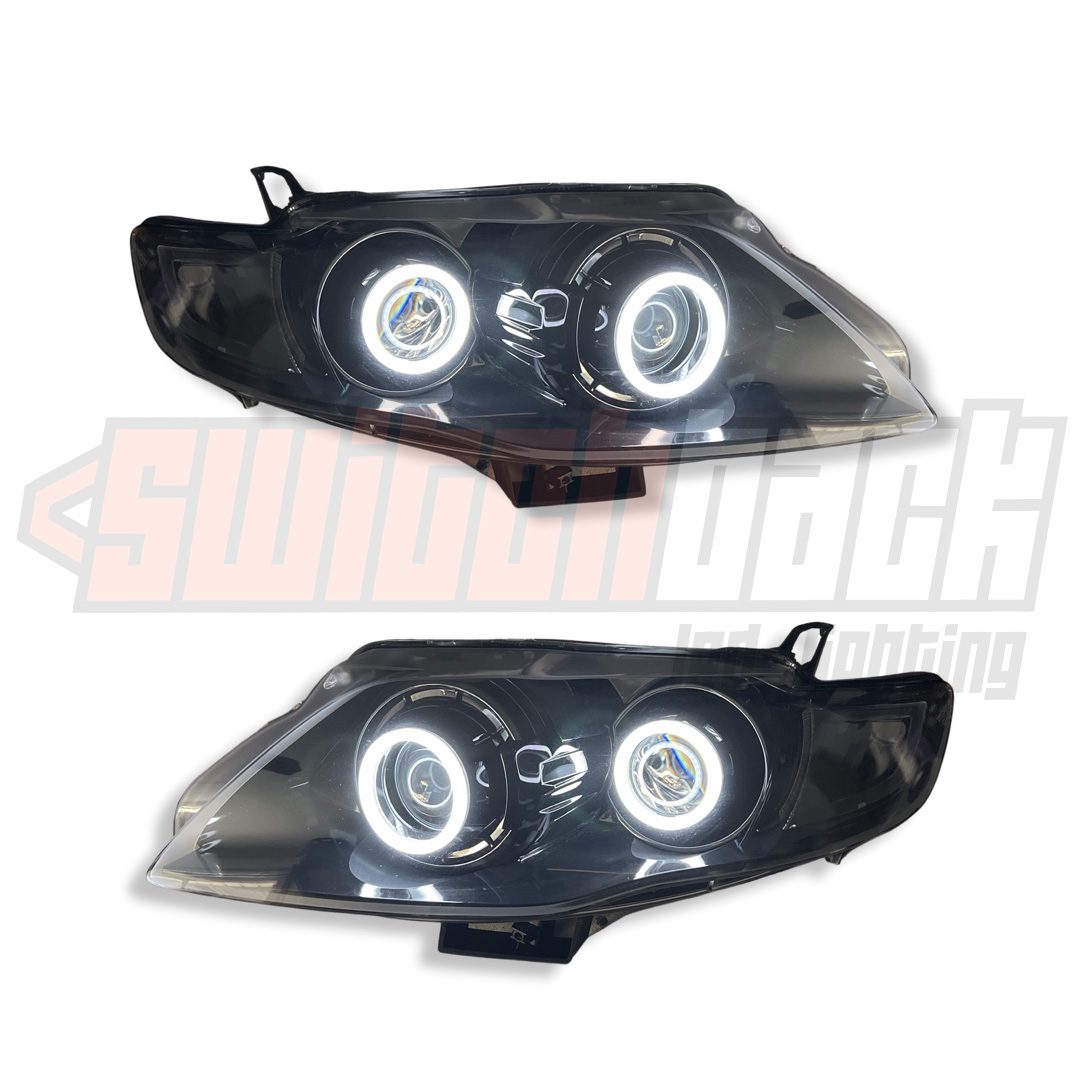

• 2x Modified Custom Headlight Fittings
• 1x Wiring kit (Driver module, bluetooth module and power supply)
• 2x Extension harness (generally the passenger side headlights halo connections will be too short to reach the drivers side.)
• 1x Tube of dielectric grease. (This MUST BE used in all 3 pin plugs to prevent water damage. Failure to do so will void warranty on the product)

LEGALITY FOR ROAD USE

For off-road use only. Please refer to our ADR law information page in the footer (bottom) of our site.

WARRANTY PERIOD

We offer a warranty period of 12 months for any defects in build quality that is affected when building these headlights, this includes headlight seal, and internal paint.

PLEASE NOTE: There is a common issue with the design of these headlights when blacking the housing out. The placement of the projector lens in conjunction with the shroud is very close, if these are left in hot/sunny environments the lens can act like a magnifying glass and reflect onto the bottom section of the shroud. Prolong exposure can cause the bottom of the shroud to start to melt due to this reflection. The only way to truly prevent this issue is to leave the shroud chrome so that the heat is reflected.

Please refrain to leaving your car in these conditions to avoid this issue, as our warranty does not cover this.

We do not offer warranty on the headlight fittings themselves from TYC as these are openned and modified units, voiding our own warranty with TYC.

Headlight Fitment:

Ford Falcon

• G6E (Series 2)

Ford Performance Vehicles FPV

• FG Series 2 = 2011.10~2014.09
  Model Variants : F6 / GT / GT-F / GT-P / GT-E / Pursuit
