For wiring and installation instructions, please click the link below.

Installation Guide – Custom Headlights

VT-VU-VX-VY-VZ HALO WIRING INSTRUCTIONS

Here at Switchback LED Lighting we also specialize in building and retrofitting headlight fittings.

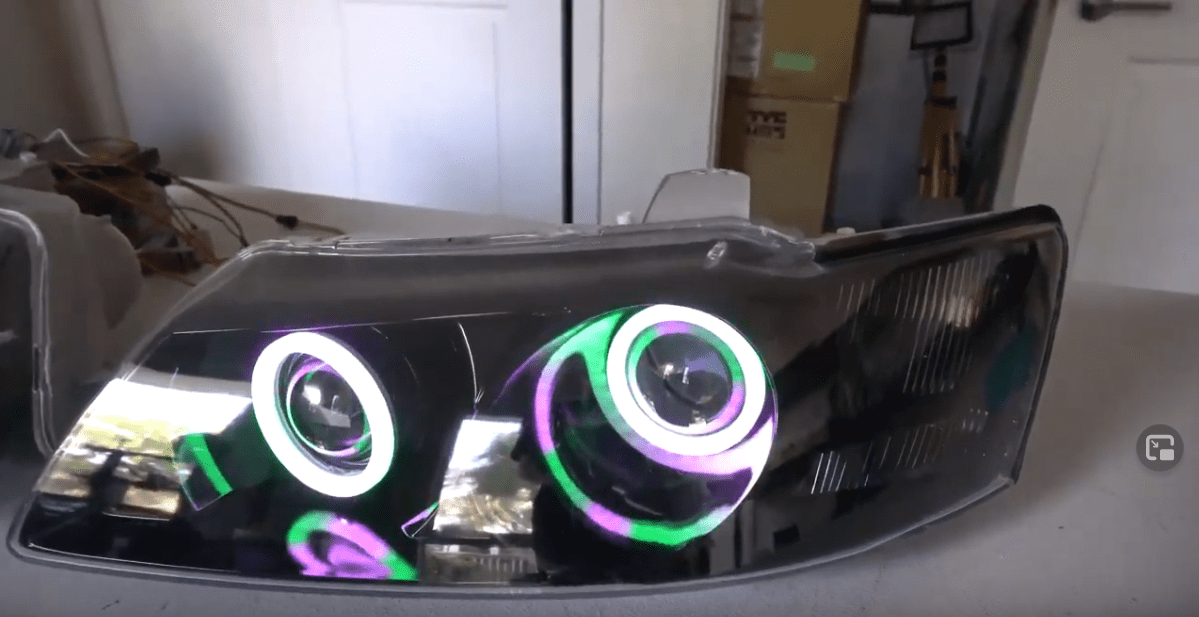

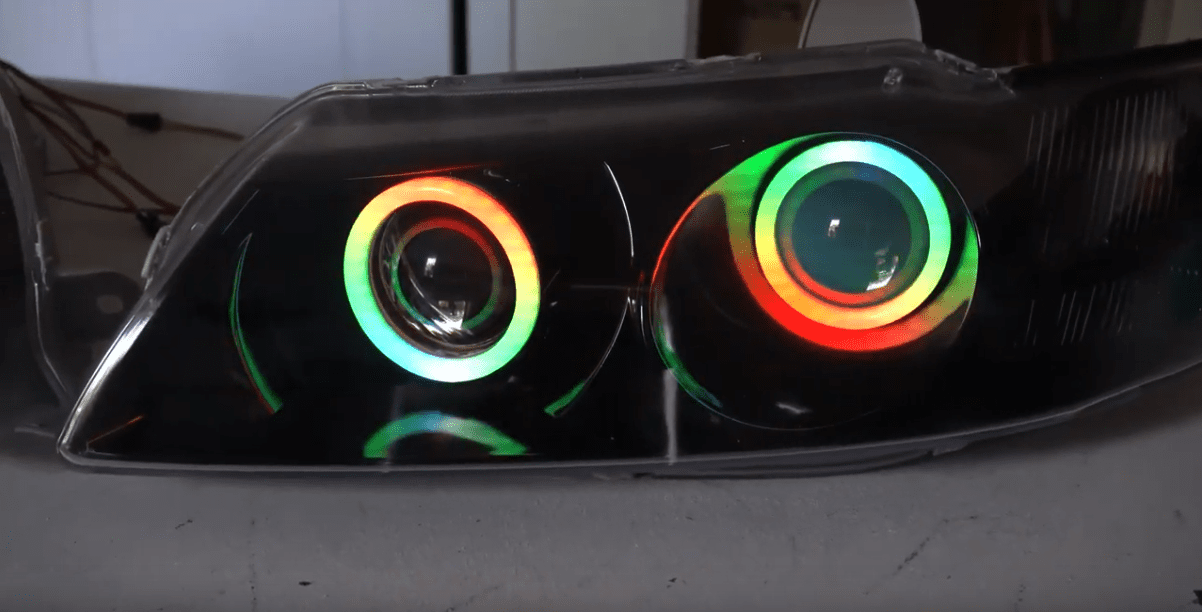

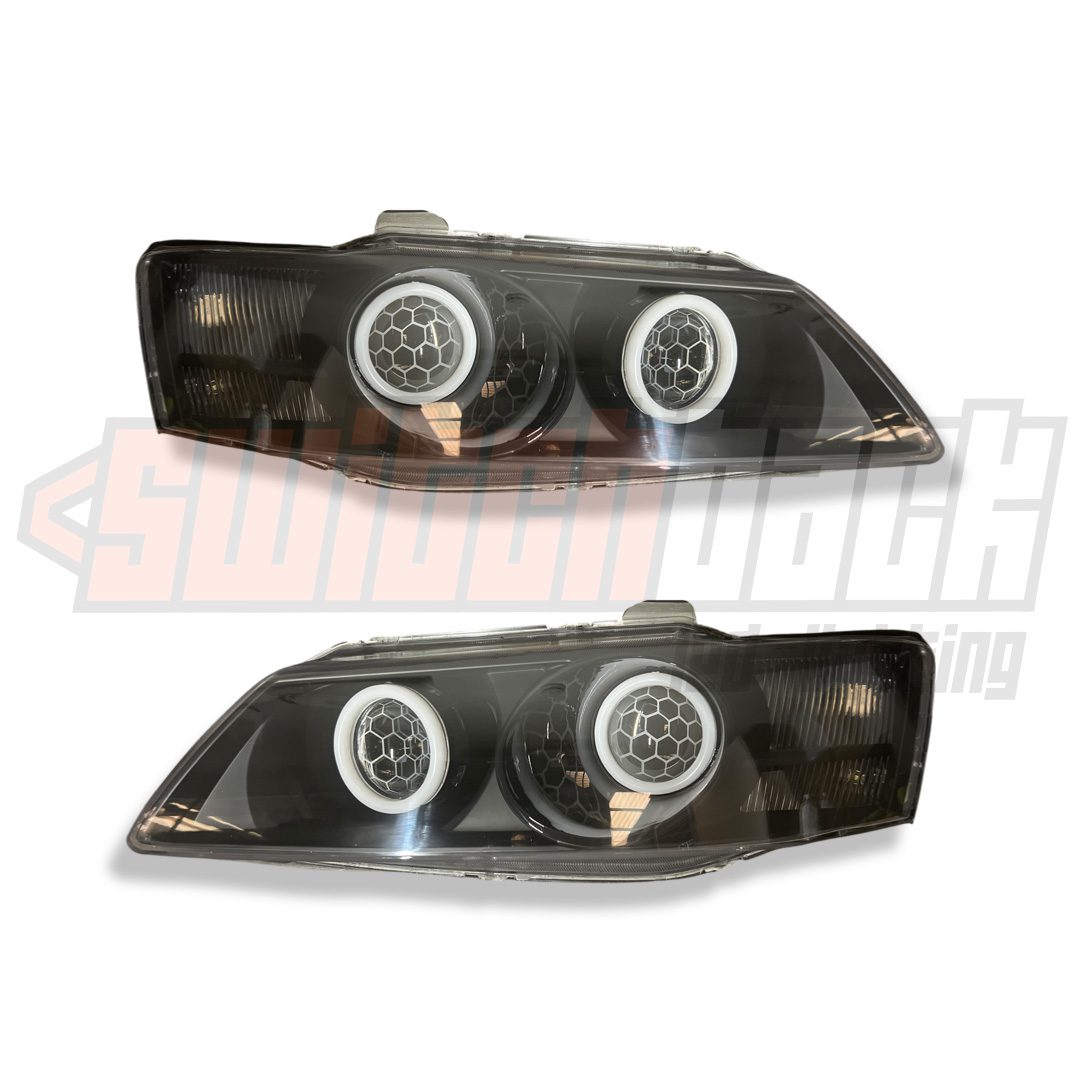

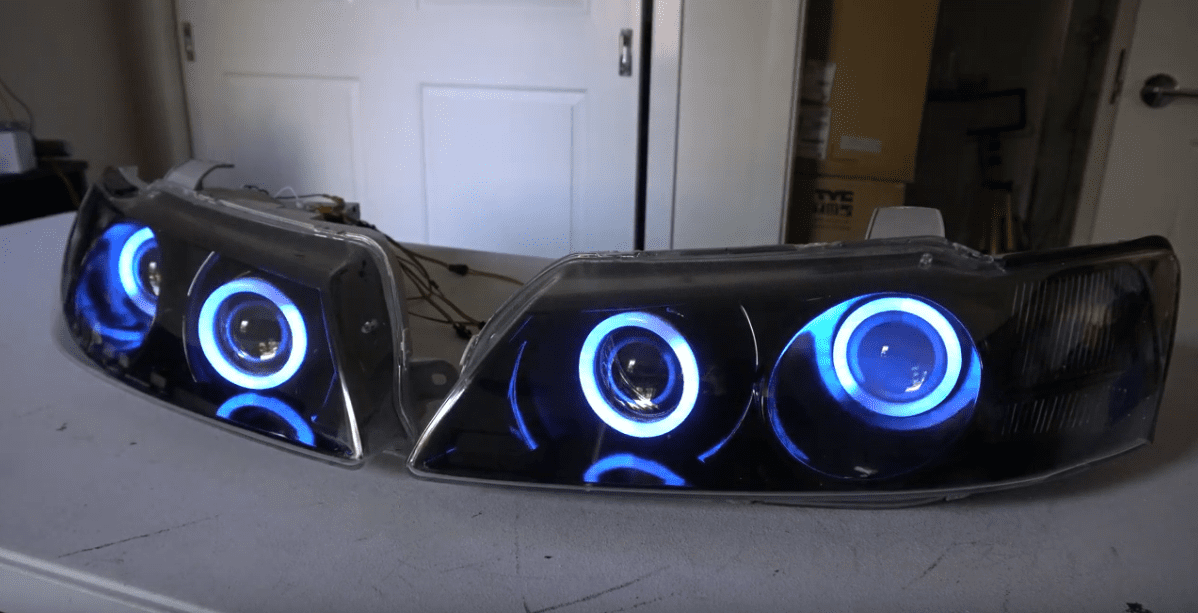

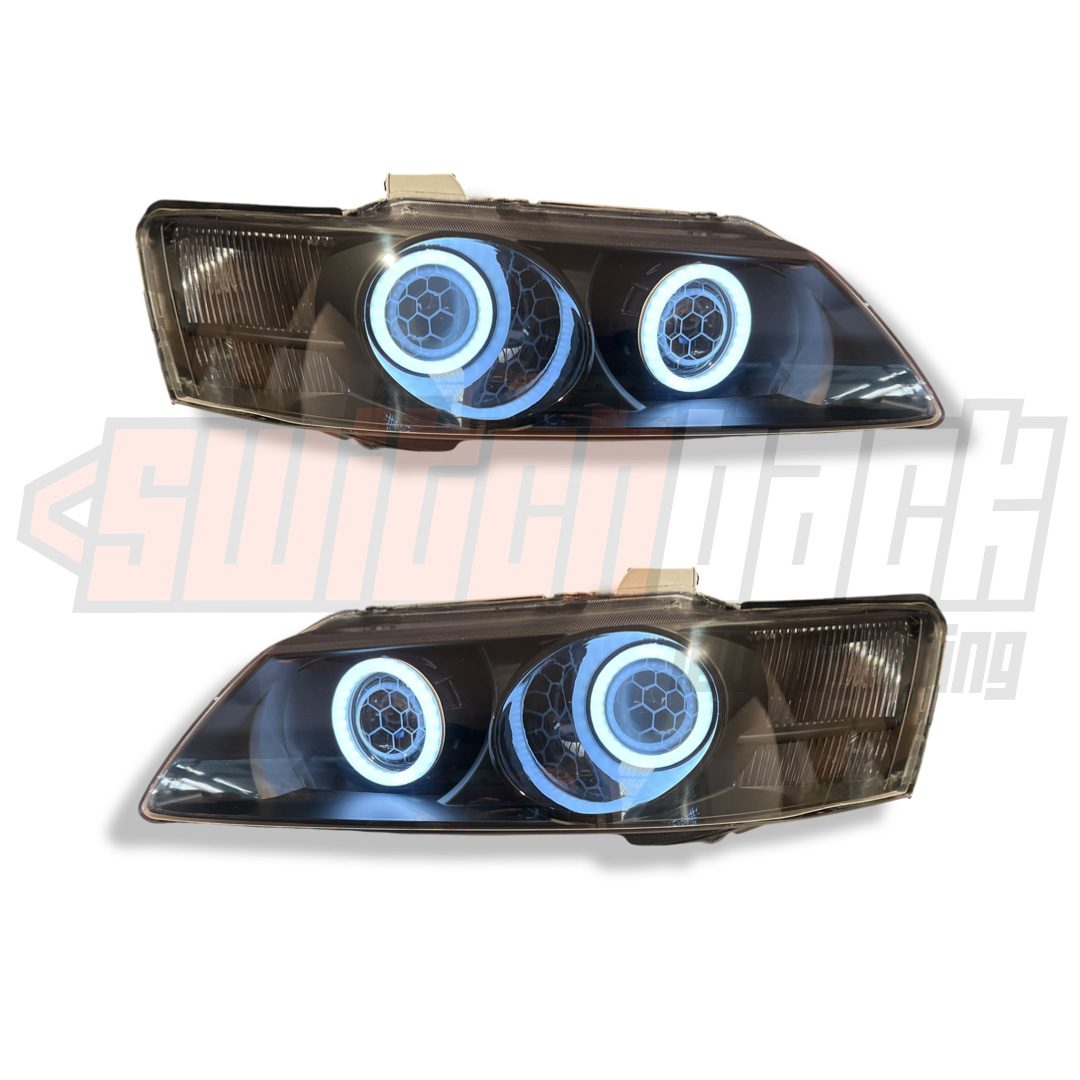

VY Calais/HSV Quad Projectors with Sequential Halos with a Gloss Blackout

Features:

• Projector conversion from standard reflector housing in High Beam (Bulb changed from H9 to a H1)
• Quad Sequential Halos (Controlled Via Smartphone App through Bluetooth)
• Housing Blackout (Matte or Gloss)
• Projector Lens Etching (None/Honeycomb)
• 200+ Chasing modes and all static colours.

INSTALLATION

These headlights are Plug and Play, plug these headlights in as normal and connect the chasing halos to 12v (from fuse box accessories/ignition fuse) & Ground and they will turn on when your key on accessories or ignition.

Please note: All electrical wiring needs to be mounted into a position that does not expose the electrical connections to water. Failure to do this may result in malfunctioning halo rings. This may be due to water damaged connections/wiring/

INCLUDED:

• 2x Modified Custom Headlight Fittings
• 1x Wiring kit (Driver module, bluetooth module and power supply)
• 2x Extension harness (generally the passenger side headlights halo connections will be too short to reach the drivers side.)
• 1x Tube of dielectric grease. (This MUST BE used in all 3 pin plugs to prevent water damage. Failure to do so will void warranty on the product)

LEGALITY FOR ROAD USE

For off-road use only. Please refer to our ADR law information page in the footer (bottom) of our site.

Lead Time

We estimate a 3-4 week lead time from when the order is placed to when the customer receives the product.

WARRANTY PERIOD

We offer a warranty period of 12 months for the halos and electronics in this kit. This warranty is only valid if the customer followed all installation directions and used all relevant parts.
