ATTENTION: Current wait time for custom headlights is 3-4 weeks + postage time.

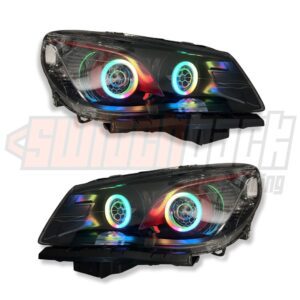

VF Custom Demon+Halo Combination Headlights

$1,910.00$2,315.01 Inc. GST

Available Options
Quantity
Wishlist

For Installation Instructions, please click the links below.

Installation Guide – Custom Headlights

DEMON EYE 3PIN RGBW INSTALLATION INSTRUCTIONS

VF HALO WIRING INSTRUCTIONS

Here at Switchback LED Lighting we also specialize in building and retrofitting headlight fittings.

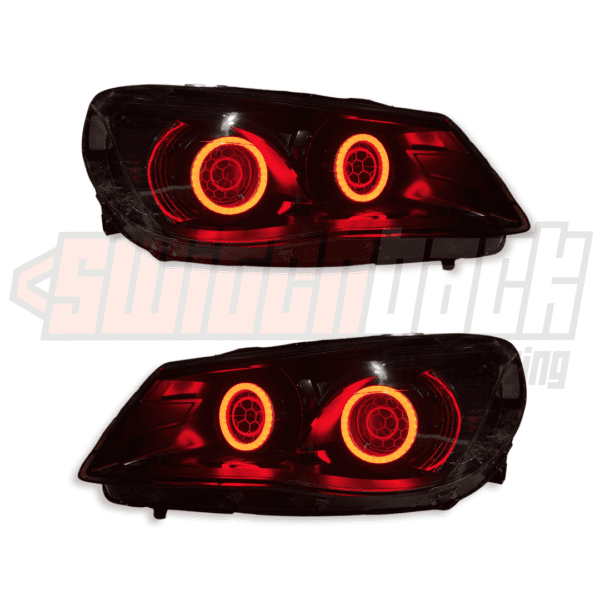

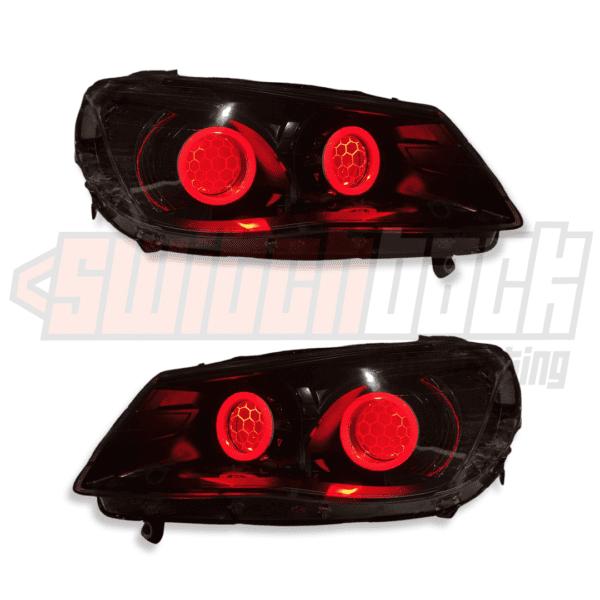

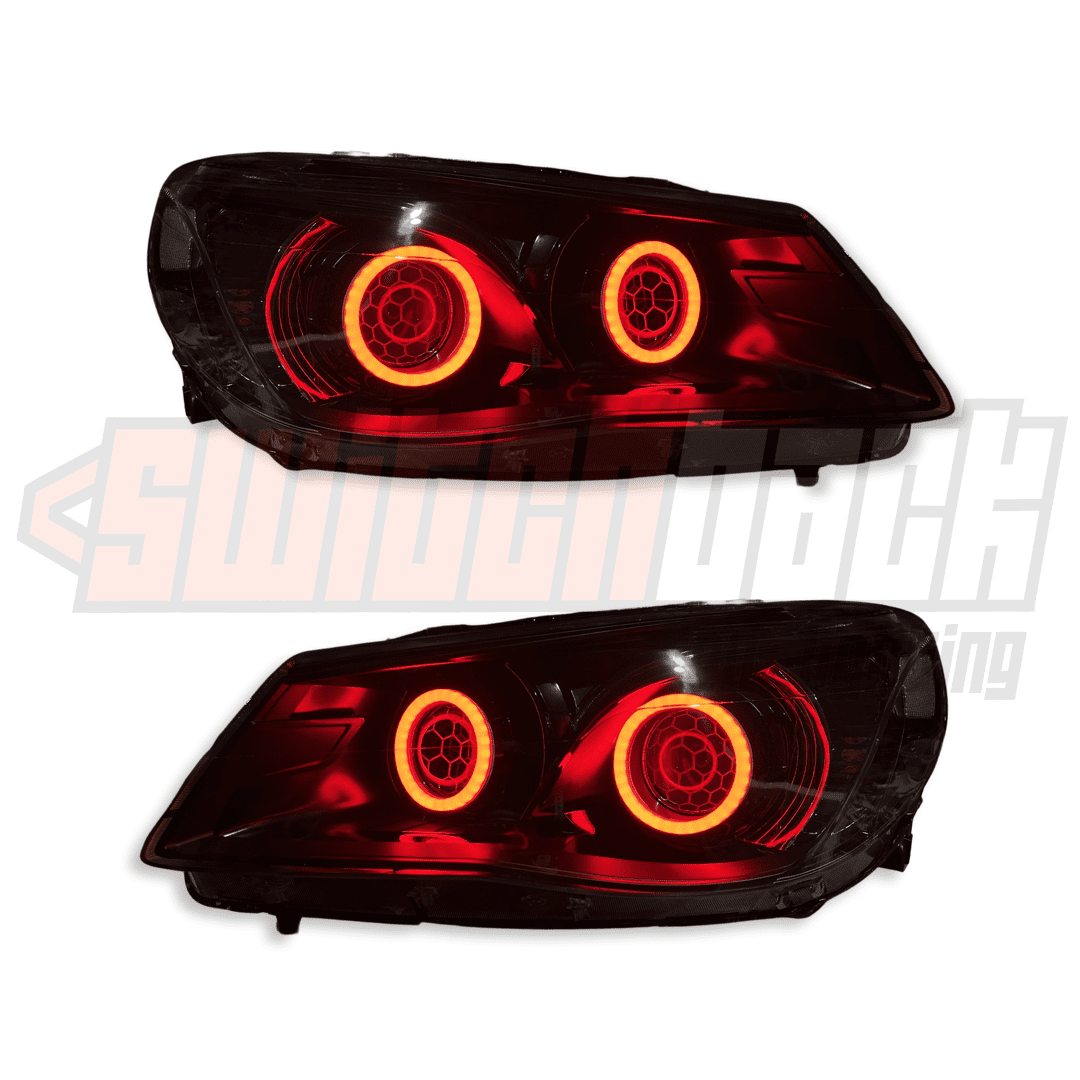

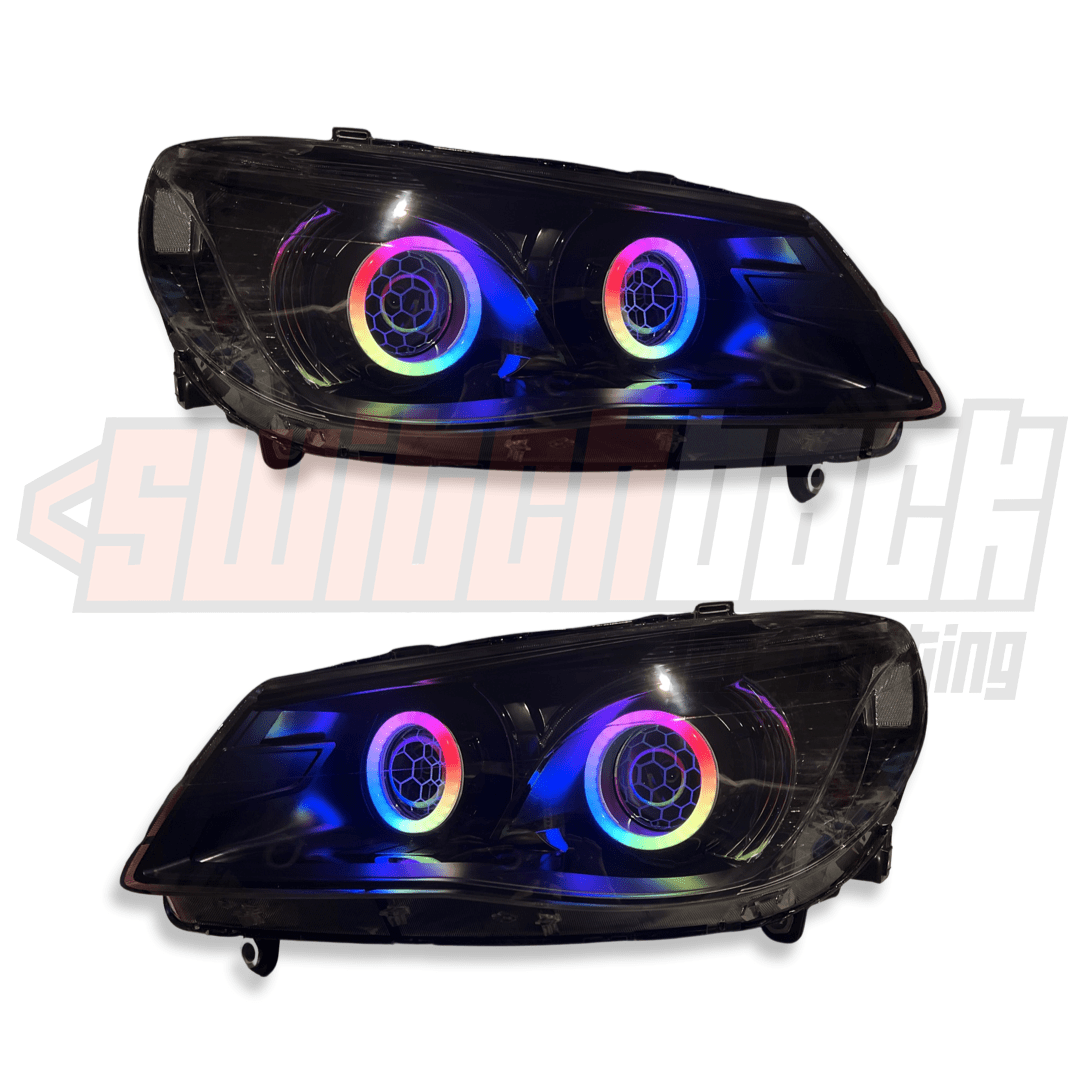

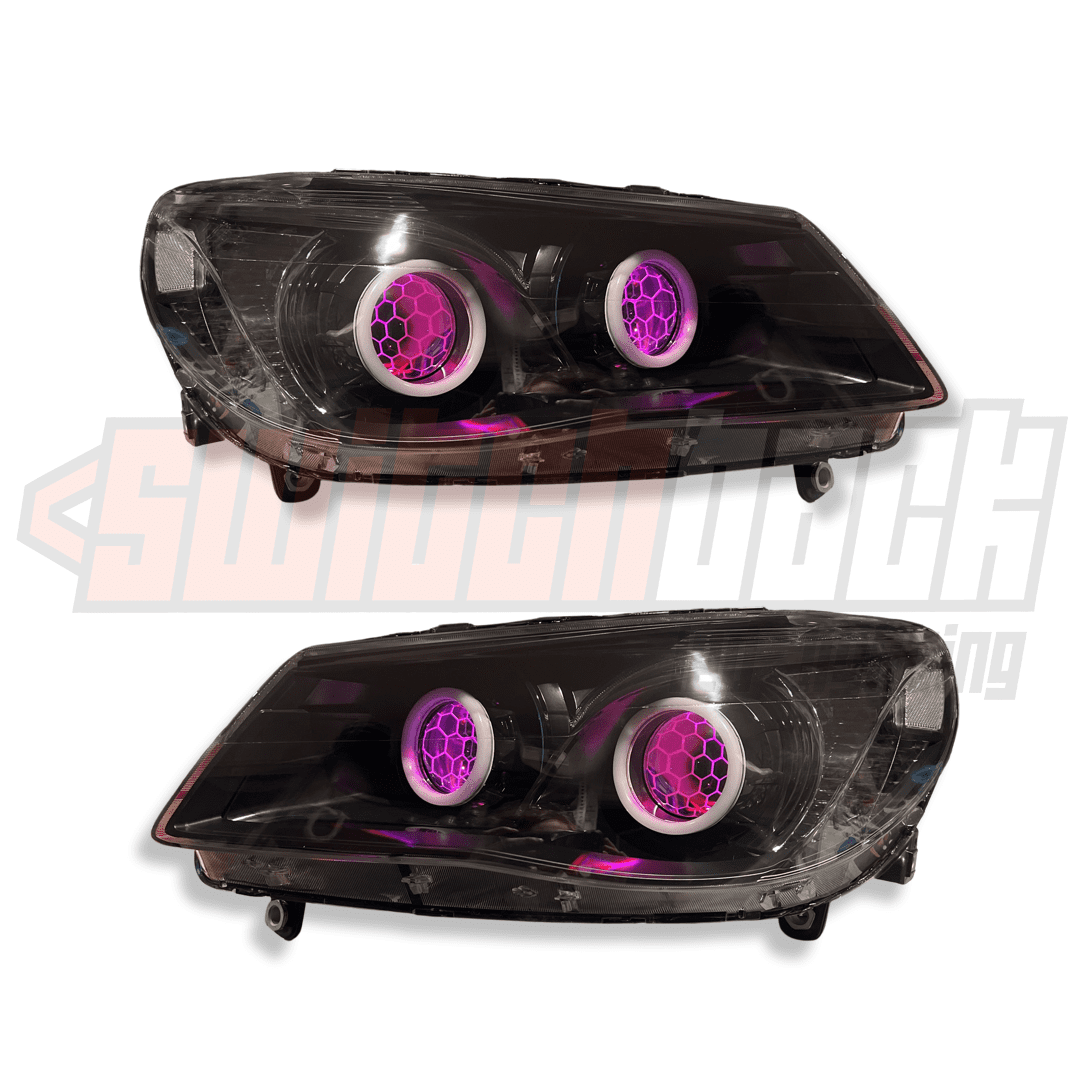

VF Quad Projectors with Sequential Halos + RGBW Demon Eyes and housing blackout

Features:

  • Projector conversion from standard reflector housing in High Beam
  • Quad Sequential Halos (Controlled Via Smartphone App through Bluetooth)
  • Quad RGBW Demon Eyes (Controlled Via Smartphone App through Bluetooth)
  • 200 Sequential modes + all solid colours.
  • Housing Blackout

These headlights are made upon order. We do not keep these “in stock” due to the amount of variations.

INSTALLATION

The headlights plug in as normal (For parkers, low beam, high beam and indicator operation). The halos and demon eyes run off SEPARATE controllers so that you are able to control them individually. This means there will be two controllers that need to be fitted.

The halo controller will operate with ignition (halos will turn on when engine running.

For the demon eye controller you can hard wire this straight to the battery and use the app for on/off controls, or some customers may wish to add an additional switch in for a manual control, this is completely up to the customer, we do not include a switch in our kits.

3 Cables need to run from the passenger headlight across to the driver side where the controllers are to be mounted/located (1x Demon Eye cables + 2x Halo Cables).

ELECTRONICS: Electronics MUST be installed in an area of the engine bay where their is no risk of water ingress. The electronics in this kits are not waterproof. Failure to do so may cause malfunction or damage to any of the electronic components (Power supply, LED driver, bluetooth module or halos/demon eyes).

INCLUDED:

  • 2x Modified Custom Headlight Fittings
  • 2x Wiring kits (Driver module, bluetooth module and power supply)
  • 2x 3 Pin Extension harnesses (generally the passenger side headlights halo connections will be too short to reach the drivers side.)
  • 2x 5 pin extension harnesses (generally the passenger side headlights demon eye connections will be too short to reach the drivers side.)
  • 1x Tube of dielectric grease. (This MUST BE used in all 3/5 pin plugs to prevent water damage. Failure to do so will void warranty on the product)

LED High beam bulb (H1) included. Optional Extras: Low beam, LED indicators.

These can be added at an additional cost.

Low beam fitting stays as a H7, high beam fitting changes FROM H9 to H1 due to the high beam projector.

NOTE FOR US CUSTOMERS:

Our headlights start off as a RHD beam pattern. Upon ordering, we look at your shipping address to see if you are a US customer. If you are, we convert our RHD projector cutoff to a LHD cutoff to suit driving on the opposite side of the road to us. This beam pattern is a ECE pattern which complies with our Australian standards, however US standards usually use a different type of lens cutoff called DOT. Please see the differences of the beam patterns below.

LEGALITY FOR ROAD USE

For off-road use only. Please check our ADR regulation page for any further information: https://switchbacklighting.com.au/adr/

Lead Time

We estimate a 4 week lead time from when the order is placed usually they are completed earlier but we allow 4.

FITMENT

Our headlights fit all VF Commodore models.

WARRANTY PERIOD

We offer a warranty period of 12 months for any defects in build quality that is affected when building these headlights, this includes headlight seal, and internal paint. Please note: OEM and Aftermarket headlights to suit VF CAN be subject to condensation on the inside of the headlight lens. This is due to the insufficient amount of breathers on these headlights, we do our best to combat this issue: 2x bolt on breather vents added, extra precautions taken when sealing headlight and 1x 10g silica packets are added inside the housing to help prevent this issue.

9 times out of 10 customers will not have this issue, but sometimes in high humidity situations mixed with cold weather it is quite common. Our warranty DOES NOT cover light condensation.

PLEASE NOTE: There is a common issue with the design of these headlights when blacking the housing out. The placement of the projector lens in conjunction with the shroud is very close, if these are left in hot/sunny environments the lens can act like a magnifying glass and reflect onto the bottom section of the shroud. Prolong exposure can cause the bottom of the shroud to start to melt due to this reflection. The only way to truly prevent this issue is to leave the shroud chrome so that the heat is reflected.

Please refrain to leaving your car in these conditions to avoid this issue, as our warranty does not cover this.



We do not offer warranty on the headlight fittings themselves from TYC.





Weight 9 kg
Dimensions 63 × 32 × 46 cm
Extras?

High Beam Only, LED Low Beam, High Beam, Parkers and Indicators

Lens Etching

Custom (Please contact us with your design), Honeycomb, None
