Here at Switchback LED Lighting we also specialize in building and retrofitting headlight fittings.

FITMENT:

• Ford Ranger: PX2, PX3, MKII/MKIII 2015-2022
• Ford Everest: UA Series: Ambiente & Trend 2015-2022

Please not: Base versions of the above vehicles may require additional wiring to get around the canbus system (due to DRL and indicator circuits)

NOT COMPATIBLE: Ford Ranger 2011-2014 Models

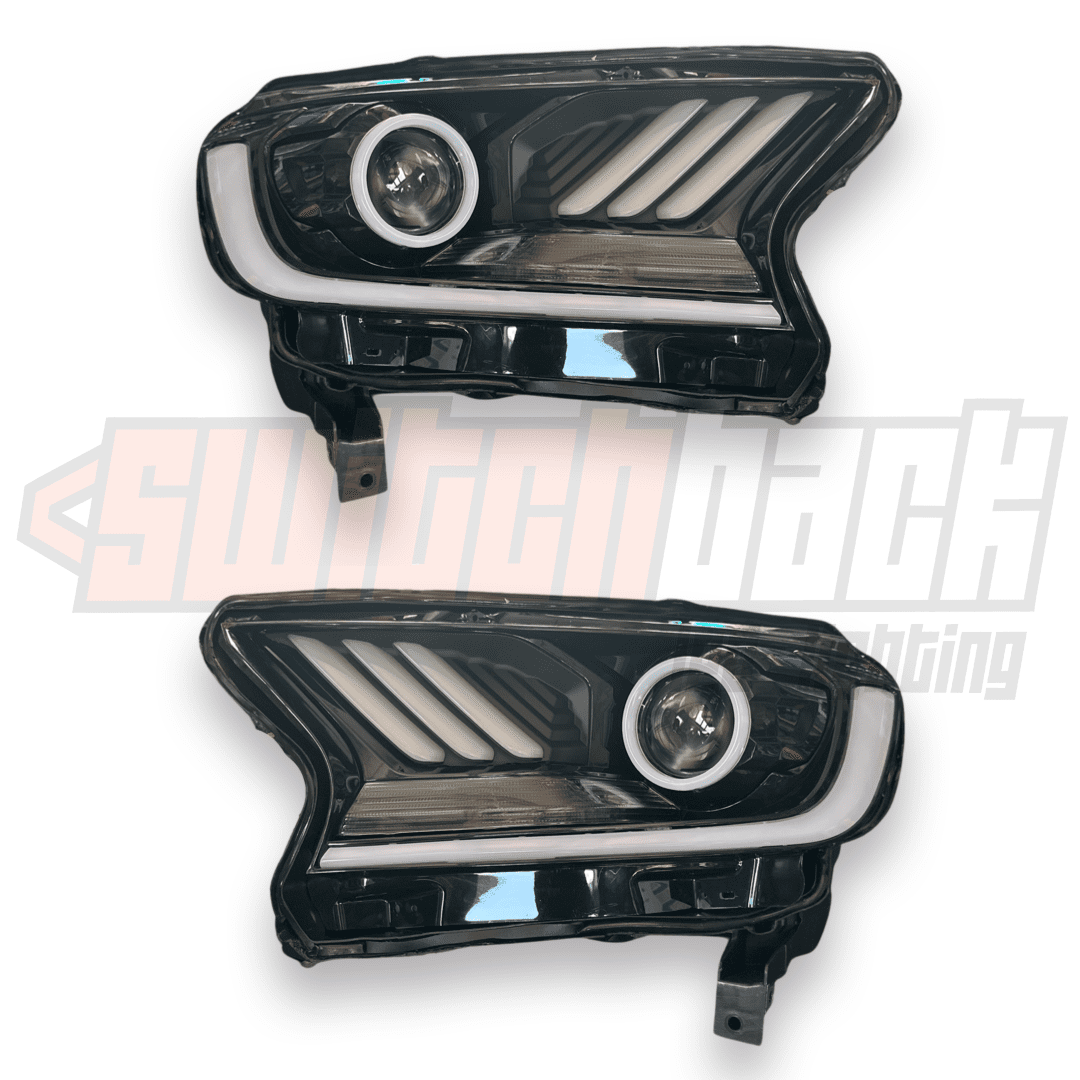

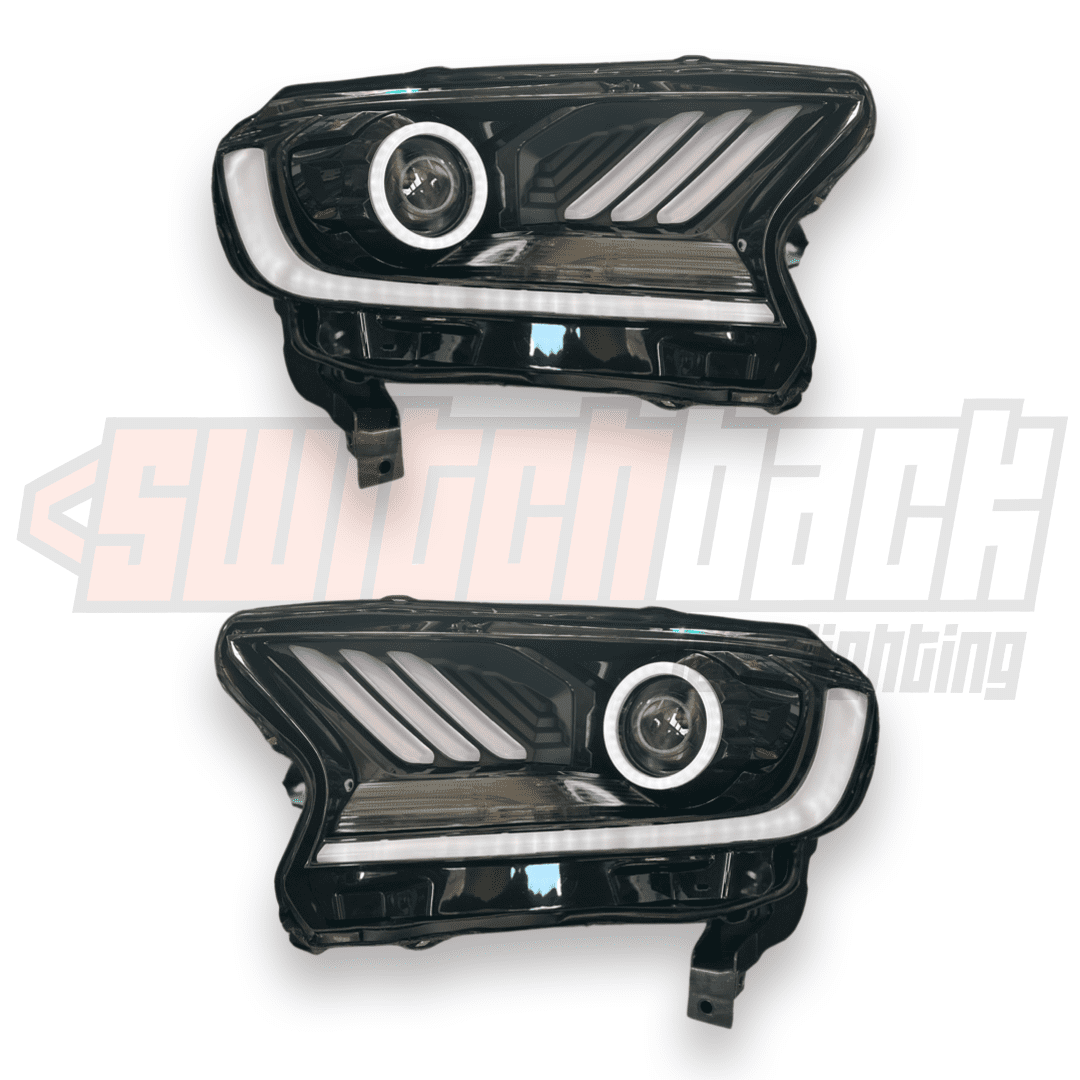

PX2/PX3 Custom headlights with Sequential Halos, tribar & DRL and housing blackout Features:

• Dual RGBW Sequential Halos (Controlled Via Smartphone App through Bluetooth)
• RGBW Tribar Unit (Controlled Via Smartphone App through Bluetooth)
• RGBW DRL Switchback Unit (Controlled Via Smartphone App through Bluetooth)
• Gloss Black Housing
• Projector Lens Etching (None/Honeycomb)

These headlights are made upon order ONLY. These headlights are not kept “in stock” due to the amount of variations of the product.

INSTALLATION

The headlights plug in as normal (Low beam, high beam). Parkers change to the DRL/Switchback Unit, Indicator changes to DRL/Switchback Unit but some basic wiring is required to power the sequential halos/DRL/Tribar.

We include a fuse tap with the wiring kit for your convenience and recommend to provide power to the halos using the following methods:

• Wired to accessories power (Halos/DRL/Switchback will come on when in accessories mode )
• Wired to ignition (Halos/DRL/Switchback will only operate when engine is running .)
• Wired to straight 12V through a switch (This is manual operation, this means that the driver can choose when the halos are on/off.) Leaving them on will flatten your battery

ELECTRONICS: Electronics MUST be installed in an area of the engine bay where their is no risk of water ingress. The electronics in this kits are not waterproof. Failure to do so may cause malfunction or damage to any of the electronic components (Power supply, LED driver, bluetooth module or halos).

Note: We include dielectric grease for customers to fill ALL 3 pin plugs. This essentially makes the plugs water resistant. If this is not applied and water gets into the area, a short between the pins on the plug can result in damage to the halo rings themselves. If this happens, the halo will need to be replaced, and that cost will be charged to the customer for the ring and labor to fit.

Wiring required:

• Positive (Accessories, Ignition, 12V)
• Negative (Chassis/ – Terminal of the battery)
• Left & Right Indicator + (We route this wire outside of the headlights for “plug&play” installation)

The rest of the kit is completely plug and play.

INCLUDED:

• 2x Modified Custom Headlight Fittings

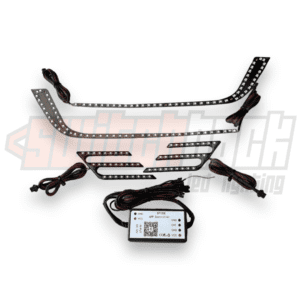

• 1x Wiring kit (Driver module, bluetooth module and power supply)
• 2x Extension harness (generally the passenger side headlights halo connections will be too short to reach the drivers side.)
• 2X JST Splitter (Our controllers only have 4 outputs, whereas we need 6 to power everything. JST splitter splits 1 channel into two, allowing 6 outputs in this case).
• 1x Tube of dielectric grease. (This MUST BE used in all 3 pin plugs to prevent water damage. Failure to do so will void warranty on the product)

H11 Low/High Beam LED is an optional extra.

We recommend to apply a PPF or Ceramic Coating onto the headlight lenses for optimal  lifespan of headlight lenses.

LEGALITY FOR ROAD USE

FOR OFFROAD USE ONLY. We are not liable for any issues with law enforcement.

Lead Time

We estimate a 4 week lead time from when the order is placed to when the customer receives the product.

WARRANTY PERIOD

We offer a warranty period of 12 months for any defects in build quality that is affected when building these headlights, this includes headlight seal, and internal paint. Please note: OEM and Aftermarket headlights CAN be subject to condensation on the inside of the headlight lens. This is due to the insufficient amount of breathers on these headlights, we do our best to combat this issue: 2x bolt on breather vents added, extra precautions taken when sealing headlight and 1x 10g silica packets are added inside the housing to help prevent this issue.

9 times out of 10 customers will not have this issue, but sometimes in high humidity situations mixed with cold weather it is quite common. Our warranty DOES NOT cover light condensation, unless the headlight is physically pooling up with water, in which case this is a seal issue

We do not offer warranty on the headlight fittings themselves from the manufacturer.
