FITMENT:

• This DIY kit is specifically designed to fit Holden Commodore VE Series 1 + Series 2 DRL Projector Headlights

NOT COMPATIBLE: Stock/OEM Headlights

VE DRL Custom headlight kit Includes:

Halo/DRL Kit:

• 2x 90mm (Low Beam) RGBW Sequential Halos (Controlled Via Smartphone App through Bluetooth)
• 2x 80mm (High Beam) RGBW Sequential Halos (Controlled Via Smartphone App through Bluetooth)

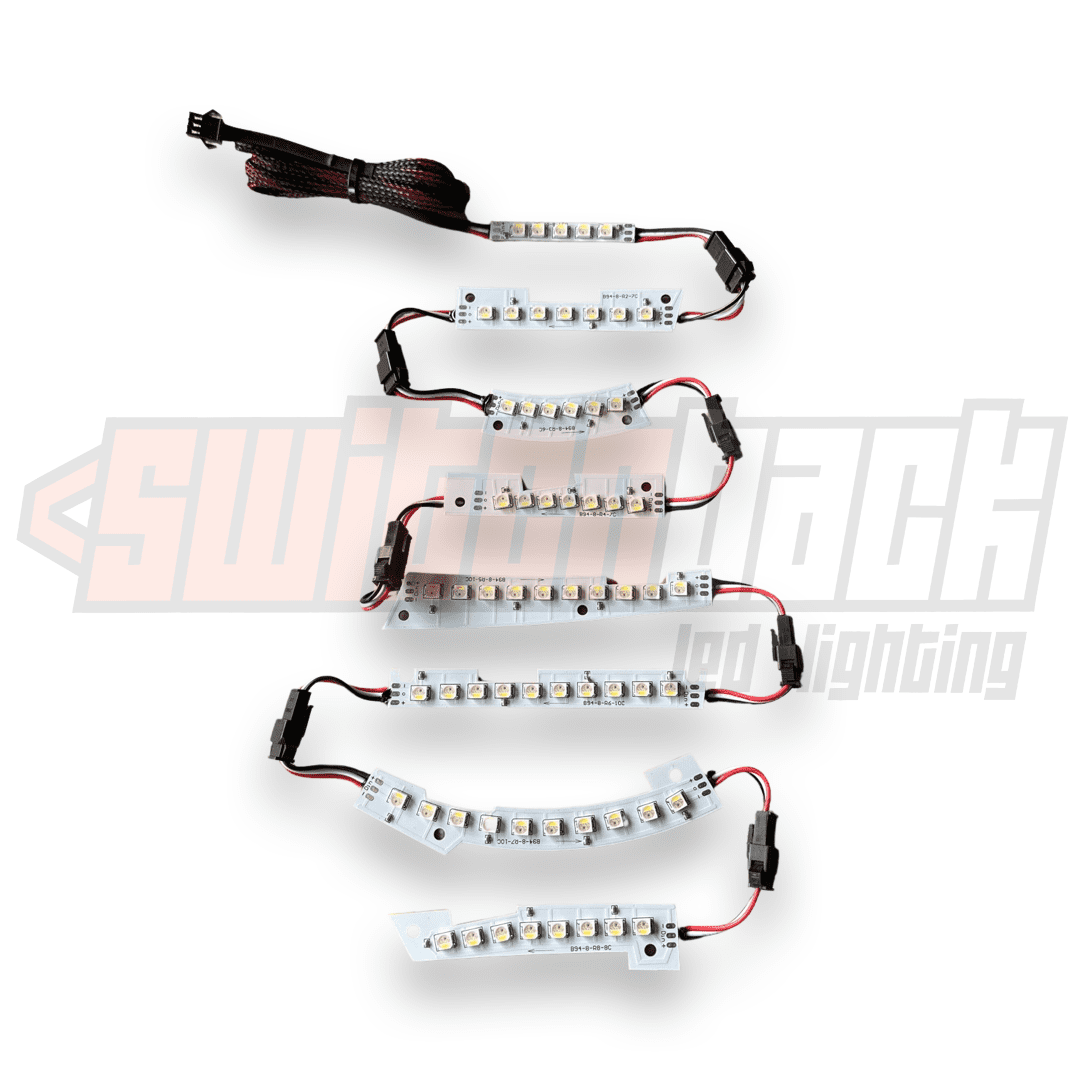

• 2x (LEFT AND RIGHT) RGBW DRL Strip (Controlled Via Smartphone App through Bluetooth)
• 1x Switchback Controller with Indicator Feature.
• 1x Roll of headlight sealing butyl.
• 3x JST Extension Cables.
• 2x JST Splitter cables.

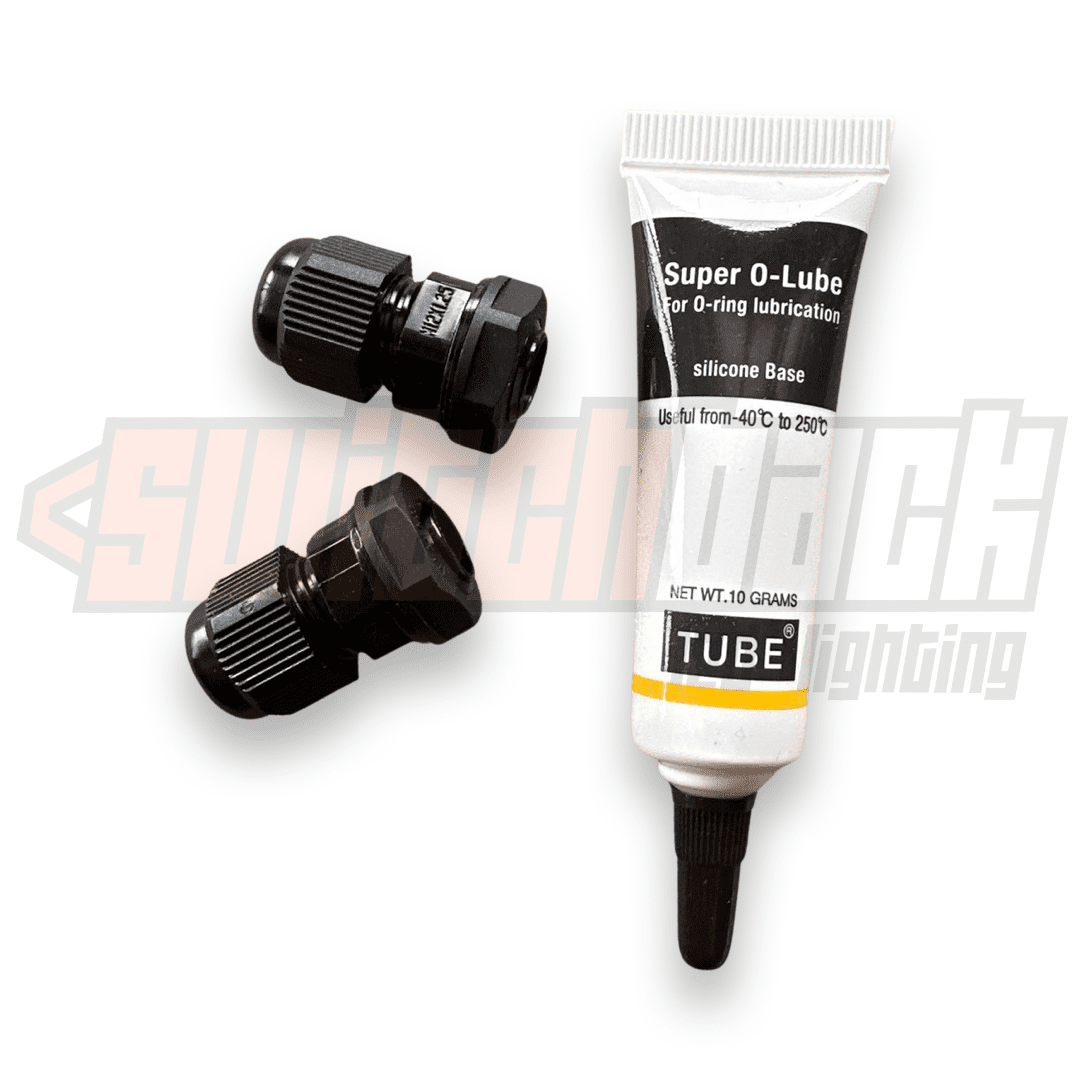

• 1x Tube Dielectric grease (to waterproof all 3 pin plugs)
• 2x GN12 Nylon Cable Glands

DRL Kit:

• 2x (LEFT AND RIGHT) RGBW DRL Strip (Controlled Via Smartphone App through Bluetooth)
• 1x Switchback Controller with Indicator Feature.
• 1x Roll of headlight sealing butyl.
• 3x JST Extension Cables.
• 2x JST Splitter cables.
• 1x Tube Dielectric grease (to waterproof all 3 pin plugs)
• 2x GN12 Nylon Cable Glands

Halo Kit:

• 2x 90mm (Low Beam) RGBW Sequential Halos (Controlled Via Smartphone App through Bluetooth)
• 2x 80mm (High Beam) RGBW Sequential Halos (Controlled Via Smartphone App through Bluetooth)
• 1x Switchback Controller with Indicator Feature.
• 1x Roll of headlight sealing butyl.
• 3x JST Extension Cables.
• 2x JST Splitter cables.
• 1x Tube Dielectric grease (to waterproof all 3 pin plugs)
• 2x GN12 Nylon Cable Glands

INSTALLATION

Your “DRL” style headlights need to be taken apart to fit this kit to your headlights. This kit is designed to replace the OEM style LED boards with new RGBW Chasing boards. These LED boards have been specifically designed for these headlights as a direct replacement.

The headlights plug in as normal (Low beam, high beam). Parkers come on as the DRL, but some basic wiring is required to power the sequential halos/DRL.

We include a fuse tap with the wiring kit for your convenience and recommend to provide power to the halos using the following methods:

• Parker fuse in the fuse box. The DRL/Halos must come on as parking lights, as these headlights do not have a parker.

ELECTRONICS: Electronics MUST be installed in an area of the engine bay where their is no risk of water ingress. The electronics in this kits are not waterproof. Failure to do so may cause malfunction or damage to any of the electronic components (Power supply, LED driver, bluetooth module or halos).

Note: We include dielectric grease for customers to fill ALL 3 pin plugs. This essentially makes the plugs water resistant. If this is not applied and water gets into the area, a short between the pins on the plug can result in damage to the halo rings themselves. If this happens, the halo will need to be replaced, and that cost will be charged to the customer for the ring and labor to fit.

LEGALITY FOR ROAD USE

FOR OFFROAD USE ONLY. We are not liable for any issues with law enforcement.

WARRANTY PERIOD

We offer a warranty period of 12 months for this DIY kit. This covers driver, halos and DRL module. Please note: Installation advice MUST be followed; not following installation advice may void warranty.
