Here at Switchback LED Lighting we also specialize in building and retrofitting headlight fittings.

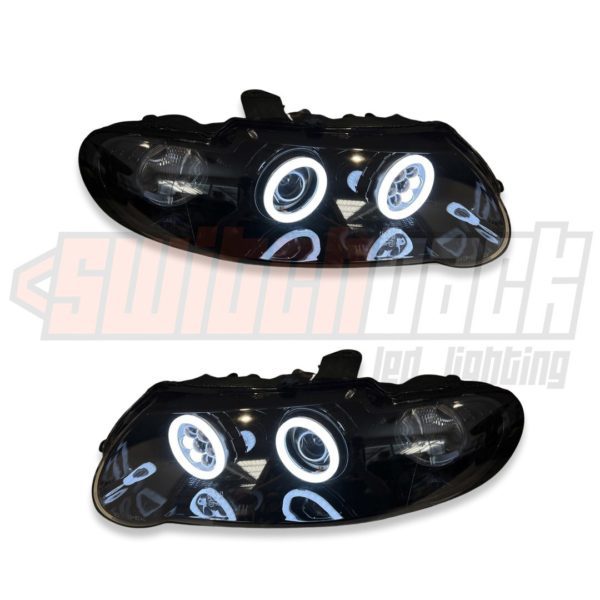

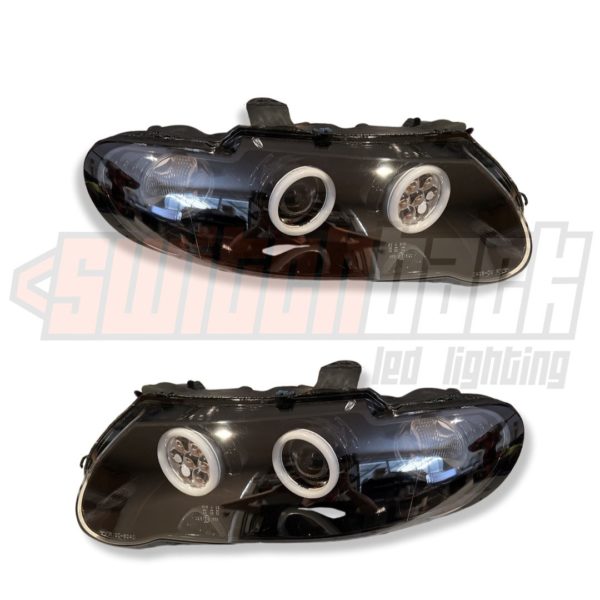

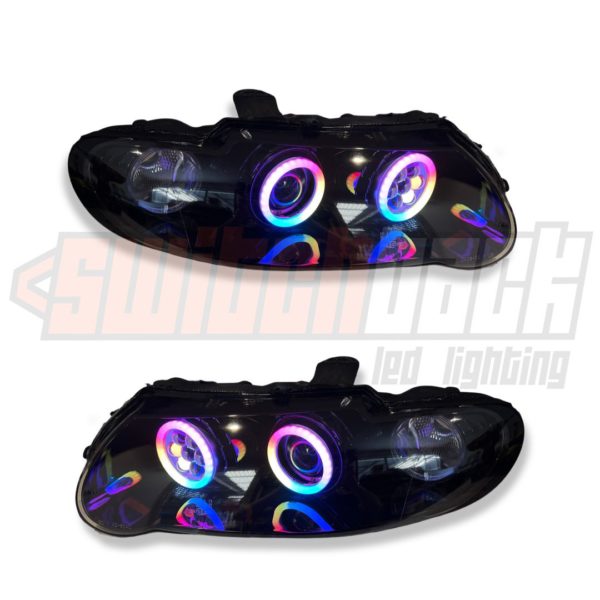

VX Projectors with Hi-Lense & Sequential Halos with black housing.
- Hi- Lense conversion from standard reflector housing in High Beam
- Quad Sequential Halos (Controlled Via Smartphone App through Bluetooth)
- 200 Sequential modes + all solid colours.
- Housing Blackout
These headlights are made upon order.
The headlights plug in as normal, due to the parker bulb being removed. We include a plug and play harness that will allow the halos to be turned on when you turn your parkers on. The bluetooth app also allows you to manually turn the halos off if needed.
The only other wiring that needs to be connected is the passenger side halos, where we include two extension harnesses for each ring to run with the factory wiring just in front of the radiator to the other side where the power supply and driver is to be mounted. The kit is completely Plug and Play
- 2x Modified Custom Headlight Fittings
- 1x Wiring kit (Driver module, bluetooth module and power supply)
- 2x Extension harness (generally the passenger side headlights halo connections will be too short to reach the drivers side.)
- 1x Tube of dielectric grease. (This MUST BE used in all 3 pin plugs to prevent water damage. Failure to do so will void warranty on the product)
LOW BEAM and INDICATORS NOT INCLUDED!
These can be added at an additional cost.
Low beam fitting stays as a H1, high beam fitting changes from H1 to a All-In-One Hi- Lense, so no need to worry about high beam bulbs!
LEGALITY FOR ROAD USE
For off-road use only. Please refer to our ADR law information page in the footer (bottom) of our site.
We estimate a 3-4 week lead time from when the order is placed. The headlights will be built at the next available moment.
We do not offer Change-of-mind returns on any of our custom headlights.
We offer a warranty period of 12 months for the halos and electronics in this kit. This warranty is only valid if the customer followed all installation directions and used all relevant parts.
